SA5020M-10MP
sa5020m-10mp
Lens

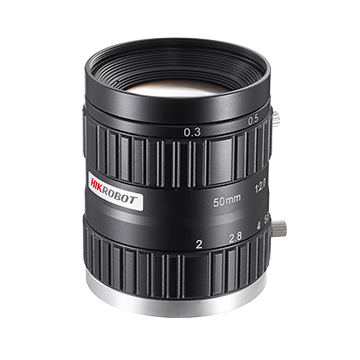

The Hikrobot SA5020M-10MP is an FA / machine-vision lens with 50 mm focal length, C-Mount.
Image circle Φ23 mm(4/3''). Aperture F2.0 ~ F22. 10MP-class design. MOD 0.3 m. Optical distortion -0.14%. Iris: Manual. Focus: Manual. Filter thread M40.5 × 0.5.
Long focal length → smaller FOV or longer WD; typical when mechanics keep the camera farther from the object. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: sa5020m-10mp
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ44.6 × 67.8 mm |
| F-Number | F2.0 ~ F22 |
| Field of View | D(22.6 mm):25.9° H(18.13 mm):20.9° V(13.6 mm):15.7° |
| Filter Thread | M40.5 × 0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 50 mm |
| Focus Control | Manual |
| Image Size | Φ23 mm(4/3'') |
| Iris Control | Manual |
| Minimum Object Distance | 0.3 m |
| Mount | C-Mount |
| Optical Distortion | -0.14% |
| Temperature | -10 ~ 50°C |
| Weight | 165 g |
