MVL-AF5040M-M42
mvl-af5040m-m42
Lens

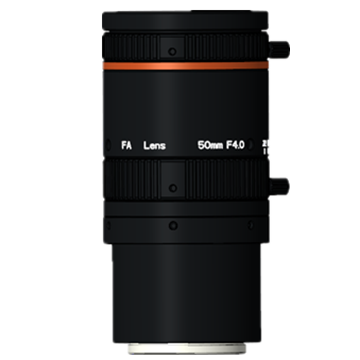

The Hikrobot MVL-AF5040M-M42 is an FA / machine-vision lens with 50 mm focal length, M42 × P1.
Image circle Φ37 mm. Aperture F4 to F22. Optical distortion 0.21%. Iris: Manual. Focus: Manual. Filter thread M52 × 0.75.
Long focal length → smaller FOV or longer WD; typical when mechanics keep the camera farther from the object. Mount M42 × P1 for larger formats or line-scan; account for flange distance and any adapter in the optical path.
Select variant
SKU: mvl-af5040m-m42
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ59 mm × 133.2 mm (Φ2.3" × 5.2") |
| F-number | F4 to F22 |
| Filter thread | M52 × 0.75 |
| Flange back length | 12 mm |
| Focal length | 50 mm |
| Focus control | Manual |
| Image size | Φ37 mm |
| Iris control | Manual |
| Magnification range | 0.323 x to 0.01 x |
| Mount | M42 × P1 |
| Optical distortion | 0.21% |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 615 g (1.4 Ib.) |
| Working distance range | 150 mm to inf mm |
