MVL-AF1828M-M42B
mvl-af1828m-m42b
Lens

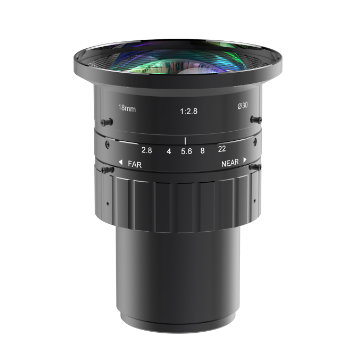

The Hikrobot MVL-AF1828M-M42B is an FA / machine-vision lens with 18 mm focal length, M42 × P1.
Image circle Φ30 mm. Aperture F2.8 to F22. Optical distortion –1.1%. Iris: Manual. Focus: Manual. Filter thread M72 × P0.75.
Mid-range focal length: size FOV and WD against sensor format and required pixels-on-feature. Mount M42 × P1 for larger formats or line-scan; account for flange distance and any adapter in the optical path.
Select variant
SKU: mvl-af1828m-m42b
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ74 mm × 92.16 mm (Φ2.9" × 3.6") |
| F-number | F2.8 to F22 |
| Filter thread | M72 × P0.75 |
| Flange back length | 12 mm |
| Focal length | 18 mm |
| Focus control | Manual |
| Image size | Φ30 mm |
| Iris control | Manual |
| Magnification range | 0.012 x to 0.105 x |
| Mount | M42 × P1 |
| Optical distortion | –1.1% |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 438.5 g (1.0 lb.) |
| Working distance range | 150 mm to 1500 mm |
