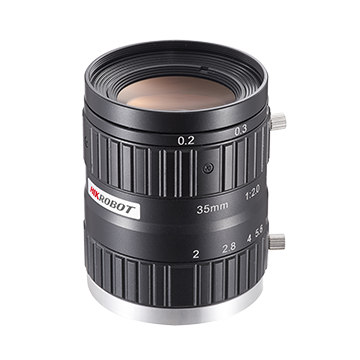

SA3520M-10MP
sa3520m-10mp
Lens
SA3520M-10MP is an industrial machine-vision lens for inspection, measurement and robot guidance. Match its focal length and sensor coverage to the required field of view, working distance and camera resolution. Check the mount, aperture and minimum object distance before ordering.
Select variant
SKU: sa3520m-10mp
Price on request
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ44.6 × 66 mm |
| F-Number | F2.0 ~ F22 |
| Field of View | D(22.6 mm):36.6° H(18.13 mm):29.6° V(13.6 mm):22.4° |
| Filter Thread | M40.5 × 0.75 |
| Flange Back Length | 17.526 mm |
| Focal length | 35 mm |
| Focus Control | Manual |
| Image Size | Φ23 mm(4/3'') |
| Iris Control | Manual |
| Minimum Object Distance | 0.2 m |
| Mount | C-Mount |
| Optical Distortion | -0.56% |
| Temperature | -10 ~ 50°C |
| Weight | 171 g |
