SA2520M-10MP
sa2520m-10mp
Lens

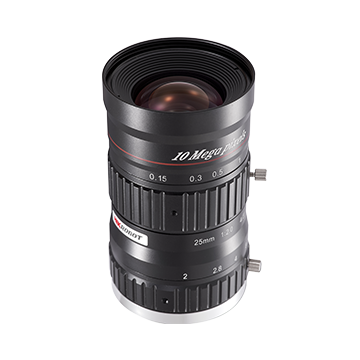

The Hikrobot SA2520M-10MP is an FA / machine-vision lens with 25 mm focal length, C-Mount.
Image circle Φ23 mm(4/3''). Aperture F2.0 ~ F22. 10MP-class design. MOD 0.15 m. Optical distortion -0.66%. Iris: Manual. Focus: Manual. Filter thread M46 × 0.75.
Mid-range focal length: size FOV and WD against sensor format and required pixels-on-feature. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: sa2520m-10mp
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ48 × 82.7 mm |
| F-Number | F2.0 ~ F22 |
| Field of View | D(22.6 mm):49.7° H(18.13 mm):40.6° V(13.6 mm):31.0° |
| Filter Thread | M46 × 0.75 |
| Flange Back Length | 17.526 mm |
| Focal length | 25 mm |
| Focus Control | Manual |
| Image Size | Φ23 mm(4/3'') |
| Iris Control | Manual |
| Minimum Object Distance | 0.15 m |
| Mount | C-Mount |
| Optical Distortion | -0.66% |
| Temperature | -10 ~ 50°C |
| Weight | 250 g |
