MVL-MF1224M-5MPE
mvl-mf1224m-5mpe
Lens

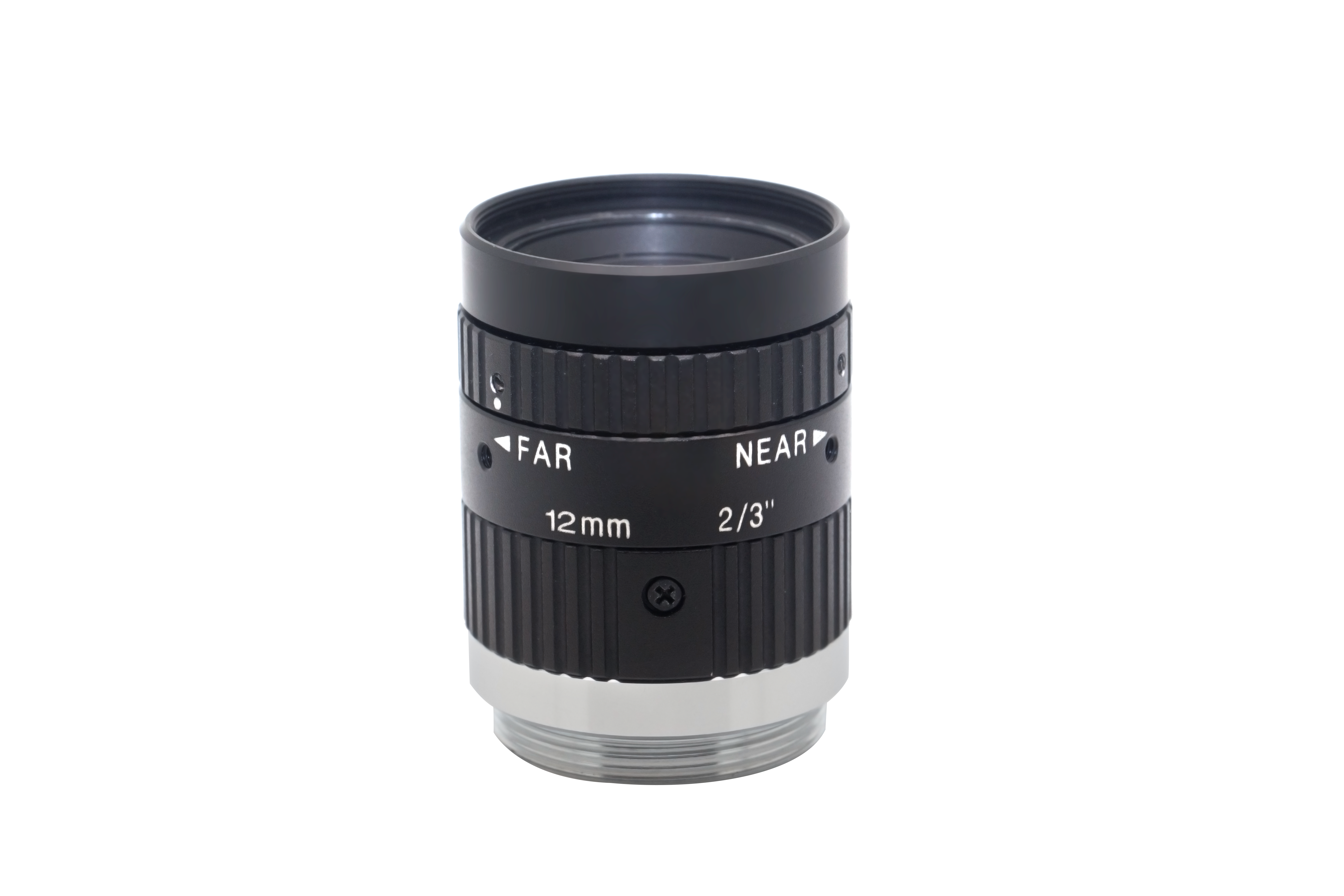

The Hikrobot MVL-MF1224M-5MPE is an FA / machine-vision lens with 12 mm focal length, C-mount.
Image circle Φ11 mm (2/3''). Aperture F2.4 to F16. 5MP-class design. MOD 0.15 m. Iris: Manual. Focus: Manual. Filter thread M27 × 0.5.
Short focal length → larger FOV at short WD; include edge field and distortion in the optical budget. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-mf1224m-5mpe
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ29 mm × (36 mm to 37.3 mm) Φ1.1" × (1.4" to 1.5") |
| Distortion | –0.16% |
| F-number | F2.4 to F16 |
| Field of View | D (11.1 mm): 49.67° H (8.45 mm): 39.09° V (7.07 mm): 33.08° |
| Filter thread | M27 × 0.5 |
| Flange back length | 17.526 mm |
| Focal length | 12 mm |
| Focus control | Manual |
| Image size | Φ11 mm (2/3'') |
| Iris control | Manual |
| Minimum object distance | 0.15 m |
| Mount | C-mount |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 71.6 g (0.2 lb.) |
