MVL-MF0824M-5MPE
mvl-mf0824m-5mpe
Lens

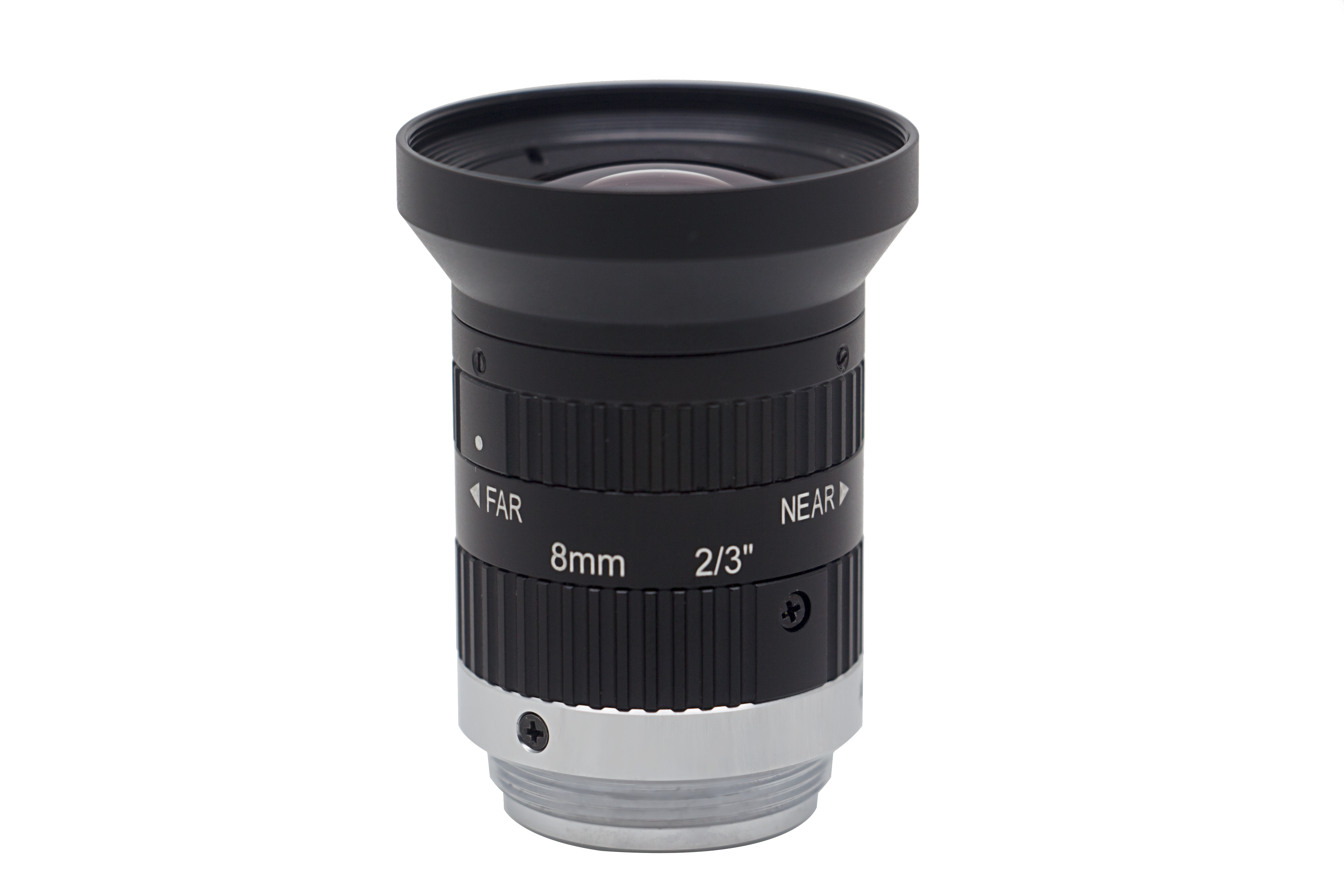

The Hikrobot MVL-MF0824M-5MPE is an FA / machine-vision lens with 8 mm focal length, C-mount.
Image circle Φ11 mm (2/3''). Aperture F2.4 to F16. 5MP-class design. MOD 0.1 m. Iris: Manual. Focus: Manual. Filter thread M35.5 × 0.5.
Short focal length → larger FOV at short WD; include edge field and distortion in the optical budget. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-mf0824m-5mpe
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ37 × 43.7~45.7 mm |
| Distortion | 2.03% |
| F-number | F2.4 to F16 |
| Field of View | D(11.1 mm):69.46° H(8.45 mm):55.57° V(7.07 mm):41.68° |
| Filter thread | M35.5 × 0.5 |
| Flange back length | 17.526 mm |
| Focal length | 8 mm |
| Focus control | Manual |
| Image size | Φ11 mm (2/3'') |
| Iris control | Manual |
| Minimum object distance | 0.1 m |
| Mount | C-mount |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 87.3 g |
