MVL-LF3528M-F
mvl-lf3528m-f
Lens

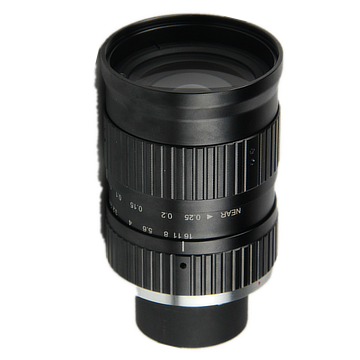

The Hikrobot MVL-LF3528M-F is an FA / machine-vision lens with 35 mm focal length, F-mount.
Image circle Φ43.2 mm. Aperture F2.8 to F16. Optical distortion 0.40%. Iris: Manual. Focus: Manual. Filter thread M58 × 0.75.
Mid-range focal length: size FOV and WD against sensor format and required pixels-on-feature. Mount F-mount for larger formats or line-scan; account for flange distance and any adapter in the optical path.
Select variant
SKU: mvl-lf3528m-f
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ61 mm × 81.5 mm (Φ2.4" × 3.2") |
| F-number | F2.8 to F16 |
| Filter thread | M58 × 0.75 |
| Flange back length | 46.5 mm |
| Focal length | 35 mm |
| Focus control | Manual |
| Image size | Φ43.2 mm |
| Iris control | Manual |
| Magnification range | 0.25 x to 0.05 x |
| Mount | F-mount |
| Optical distortion | 0.40% |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 536 g (1.2 Ib.) |
| Working distance range | 129 mm to 728 mm |
