MVL-LF3040M-005-M72
mvl-lf3040m-005-m72
Lens

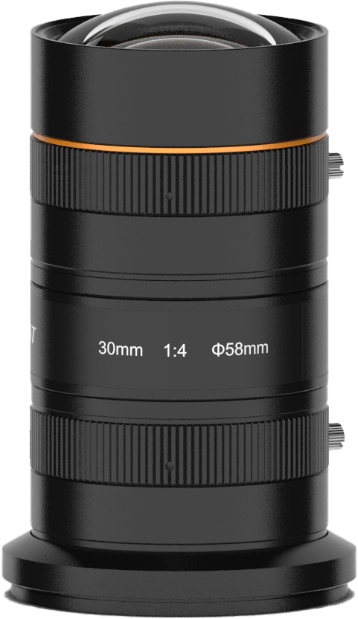

The Hikrobot MVL-LF3040M-005-M72 is an FA / machine-vision lens with 30 mm focal length, M72 × P0.75.
Image circle Φ58 mm. Aperture F4.0 to F16. Optical distortion –0.84%. Iris: Manual. Focus: Manual.
Mid-range focal length: size FOV and WD against sensor format and required pixels-on-feature. Mount M72 × P0.75 for larger formats or line-scan; account for flange distance and any adapter in the optical path.
Select variant
SKU: mvl-lf3040m-005-m72
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Conjugate distance range | 345 mm to 1137 mm (tolerance: ± 9 mm) |
| Dimension | Φ76 mm × 123.93 mm (Φ3.0" × 4.9") |
| F-number | F4.0 to F16 |
| Flange back length | 12 mm |
| Focal length | 30 mm |
| Focus control | Manual |
| Image size | Φ58 mm |
| Iris control | Manual |
| Magnification range | 0.145 x to 0.031 x |
| Mount | M72 × P0.75 |
| Optical distortion | –0.84% |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 797 g (1.8 lb.) |
| Working distance range | 205 mm to 1000 mm (tolerance: ± 5 mm) |
