MVL-KF7528M-12MP
mvl-kf7528m-12mp
Lens

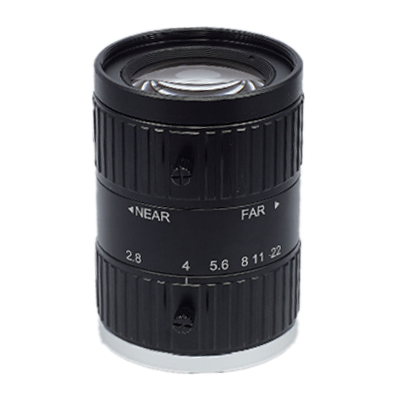

The Hikrobot MVL-KF7528M-12MP is an FA / machine-vision lens with 75 mm focal length, C-mount.
Image circle Φ16 mm (1"). Aperture F2.8 to F22. 12MP-class design. MOD 0.5 m. Optical distortion 0.75%. Iris: Manual. Focus: Manual. Filter thread M39 × 0.5.
Long focal length → smaller FOV or longer WD; typical when mechanics keep the camera farther from the object. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-kf7528m-12mp
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ42 mm × 60.3 mm (Φ1.7'' × 2.4'') |
| F-number | F2.8 to F22 |
| Field of View | D (15.86 mm): 12.2° H (12.45 mm): 9.8° V (9.83 mm): 7.3° |
| Filter thread | M39 × 0.5 |
| Flange back length | 17.526 mm |
| Focal length | 75 mm |
| Focus control | Manual |
| Image size | Φ16 mm (1") |
| Iris control | Manual |
| Minimum object distance | 0.5 m |
| Mount | C-mount |
| Optical distortion | 0.75% |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 187 g (0.4 lb.) |
