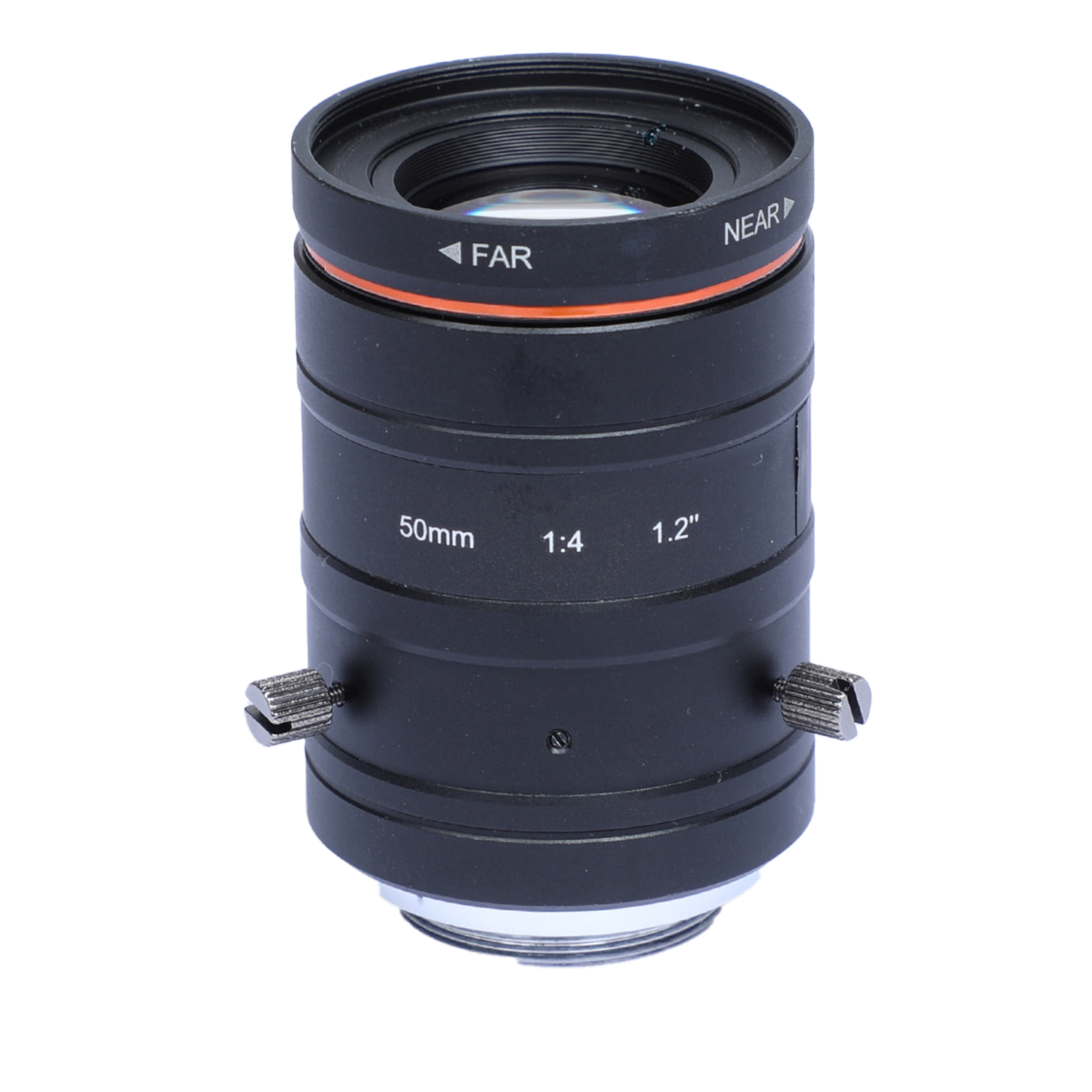

MVL-KF5040-25MP
mvl-kf5040-25mp
Lens
The Hikrobot MVL-KF5040-25MP is an FA / machine-vision lens with 50 mm focal length, C-Mount.
Image circle Φ19.3 mm(1.2"). Aperture F4.0. 5MP-class design. MOD 0.15 m. Iris: Fixed. Focus: Manual. Filter thread M35.5 × P0.5.
Long focal length → smaller FOV or longer WD; typical when mechanics keep the camera farther from the object. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-kf5040-25mp
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ38 × 56.53~67.95 mm |
| Distortion | 0.05% |
| F-Number | F4.0 |
| Field of View | D(19.3 mm):20.6° H(14.6 mm):15.7° V(12.63 mm):13.6° |
| Filter Thread | M35.5 × P0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 50 mm |
| Focus Control | Manual |
| Image Size | Φ19.3 mm(1.2") |
| Iris Control | Fixed |
| Minimum Object Distance | 0.15 m |
| Mount | C-Mount |
| Temperature | -10 ~ 50°C |
| Weight | 187 g |
