MVL-KF3528M-12MP
Φ38.6 mm × 53.61 mm (Φ1.5" × 2.1")
mvl-kf3528m-12mp
Lens

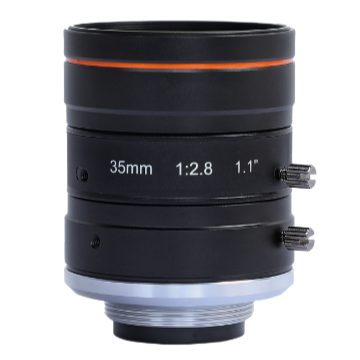

The Hikrobot MVL-KF3528M-12MP is an FA / machine-vision lens with 35 mm focal length, C-Mount.
12MP-class design. MOD 0.2 m. Iris: Manual. Focus: Manual. Filter thread M35.5 × 0.5.
Mid-range focal length: size FOV and WD against sensor format and required pixels-on-feature. C-mount: sensor format must stay inside the image circle.
Beschikbare configuraties
- mvl-kf3528m-12mp — Φ38.6 mm × 53.61 mm (Φ1.5" × 2.1")
- mvl-kf3528m-12mpe — Φ38 × 47.6 mm
Select variant
SKU: mvl-kf3528m-12mp
Specifications
| Certification | RoHS2.0 |
|---|---|
| Filter Thread | M35.5 × 0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 35 mm |
| Focus Control | Manual |
| Iris Control | Manual |
| Minimum Object Distance | 0.2 m |
| Mount | C-Mount |
| Dimension | Φ38.6 mm × 53.61 mm (Φ1.5" × 2.1") |
