MVL-HF5028M-6MPE
mvl-hf5028m-6mpe
Lens

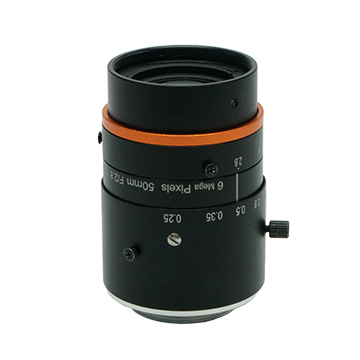

MVL-HF5028M-6MPE is an industrial machine-vision lens for inspection, measurement and robot guidance. Sensor format, lens mount, field of view and working distance determine whether the optics fit the imaging setup.
Select variant
SKU: mvl-hf5028m-6mpe
Prijs op aanvraag
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ37×51.7 mm |
| Distortion | 0.03% |
| F-Number | F2.8~F16 |
| Field of View | D(8.96mm):9.72° H(7.38mm):7.84° V(4.92mm):5.24° |
| Filter Thread | M30.5×0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 50 mm |
| Focus Control | Manual |
| Image Size | Φ9 mm(1/1.8'') |
| Iris Control | Manual |
| Minimum Operation Distance | 0.25 m |
| Mount | C-Mount |
| Temperature | -10 ~ 50°C |
| Weight | 102 g |
