MVL-HF5024M-10MP
mvl-hf5024m-10mp
Lens

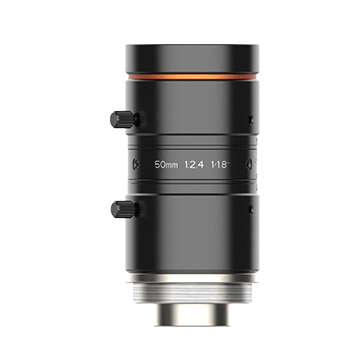

The Hikrobot MVL-HF5024M-10MP is an FA / machine-vision lens with 50 mm focal length, C-Mount.
Image circle Φ9 mm(1/1.8''). Aperture F2.4 ~ F16. 10MP-class design. MOD 0.3 m. Iris: Manual. Focus: Manual. Filter thread M27 × 0.5.
Long focal length → smaller FOV or longer WD; typical when mechanics keep the camera farther from the object. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-hf5024m-10mp
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ29.5 × 52 mm |
| Distortion | 0.03% |
| F-Number | F2.4 ~ F16 |
| Field of View | D(8.96mm):9.10° H(7.38mm):7.48° V (4.92mm):5.00° |
| Filter Thread | M27 × 0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 50 mm |
| Focus Control | Manual |
| Image Size | Φ9 mm(1/1.8'') |
| Iris Control | Manual |
| Minimum Object Distance | 0.3 m |
| Mount | C-Mount |
| Temperature | -10 ~ 50°C |
| Weight | 85.9 g |
