MVL-HF3028M-6MPE
mvl-hf3028m-6mpe
Lens

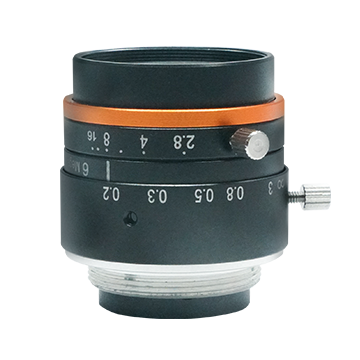

The Hikrobot MVL-HF3028M-6MPE is an FA / machine-vision lens with 30 mm focal length, C-Mount.
Image circle Φ9 mm(1/1.8''). Aperture F2.8 ~ F16. MOD 0.2 m. Iris: Manual. Focus: Manual. Filter thread M27 × P0.5.
Mid-range focal length: size FOV and WD against sensor format and required pixels-on-feature. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-hf3028m-6mpe
Specifications
| Certification | ROHS2.0 |
|---|---|
| Dimension | Φ33 × 29.4 mm |
| Distortion | -0.031% |
| F-Number | F2.8 ~ F16 |
| Field of View | D(8.96mm):16.99° H(7.38mm):14.01° V(4.92mm):9.38° |
| Filter Thread | M27 × P0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 30 mm |
| Focus Control | Manual |
| Image Size | Φ9 mm(1/1.8'') |
| Iris Control | Manual |
| Minimum Object Distance | 0.2 m |
| Mount | C-Mount |
| Temperature | -10 ~ 50°C |
| Weight | 49.2 g |
