MVL-HF1224M-10MP
mvl-hf1224m-10mp
Lens

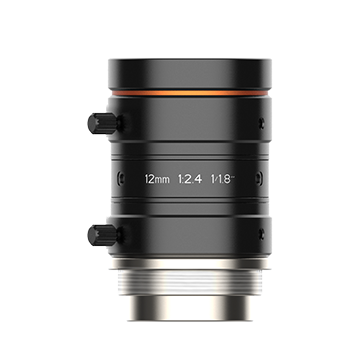

The Hikrobot MVL-HF1224M-10MP is an FA / machine-vision lens with 12 mm focal length, C-Mount.
Image circle Φ9 mm(1/1.8''). Aperture F2.4 ~ F16. 10MP-class design. MOD 0.1 m. Iris: Manual. Focus: Manual. Filter thread M27 × 0.5.
Short focal length → larger FOV at short WD; include edge field and distortion in the optical budget. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-hf1224m-10mp
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ29 × 37 mm |
| Distortion | 0.15% |
| F-Number | F2.4 ~ F16 |
| Field of View | D(8.96mm):40.2° H(7.38mm):33.6° V(4.92mm):22.9° |
| Filter Thread | M27 × 0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 12 mm |
| Focus Control | Manual |
| Image Size | Φ9 mm(1/1.8'') |
| Iris Control | Manual |
| Minimum Object Distance | 0.1 m |
| Mount | C-Mount |
| Temperature | -10 ~ 50°C |
| Weight | 65.9 g |
