MVL-HF0828M-6MPE
mvl-hf0828m-6mpe
Lens

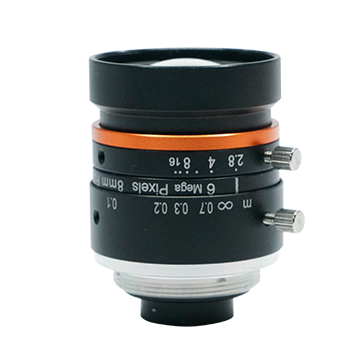

The Hikrobot MVL-HF0828M-6MPE is an FA / machine-vision lens with 8 mm focal length, C-Mount.
Image circle Φ9 mm(1/1.8''). Aperture F2.8 ~ F16. Iris: Manual. Focus: Manual. Filter thread M30.5×P0.5.
Short focal length → larger FOV at short WD; include edge field and distortion in the optical budget. C-mount: sensor format must stay inside the image circle.
Select variant
SKU: mvl-hf0828m-6mpe
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ33×34.5 mm |
| Distortion | 0.049% |
| F-Number | F2.8 ~ F16 |
| Field of View | D(8.96mm):58.50° H(7.38mm):49.46° V(4.92mm):34.19° |
| Filter Thread | M30.5×P0.5 |
| Flange Back Length | 17.526 mm |
| Focal length | 8 mm |
| Focus Control | Manual |
| Image Size | Φ9 mm(1/1.8'') |
| Iris Control | Manual |
| Minimum Operation Distance | 0.1 m |
| Mount | C-Mount |
| Temperature | -10 ~ 50°C |
| Weight | 63.3 g |
