MVL-HF0628-05S
mvl-hf0628-05s
Lens

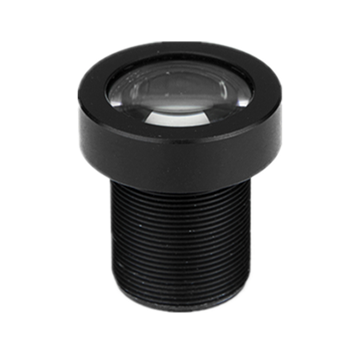

The Hikrobot MVL-HF0628-05S is an FA / machine-vision lens with 6 mm focal length, S-Mount.
Image circle Φ9 mm(1/1.8''). Aperture F2.8.
Short focal length → larger FOV at short WD; include edge field and distortion in the optical budget.
Select variant
SKU: mvl-hf0628-05s
Specifications
| Certification | RoHS2.0 |
|---|---|
| Dimension | Φ20 mm×22.48 mm |
| F-Number | F2.8 |
| Field of View | D(8.86 mm):73° H(7.37 mm):63° V(4.91 mm):45° |
| Focal length | 6 mm |
| Image Size | Φ9 mm(1/1.8'') |
| Mount | S-Mount |
| Temperature | -10 ~ 50°C |
| TTL | 28.4 ~28.9 mm |
| TV Distortion | <0.5% |
| Working Distance Range | 100 ~ 850 mm |
