MVL-AF5028M-M42A
mvl-af5028m-m42a
Lens

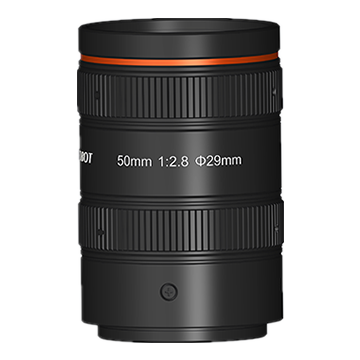

The Hikrobot MVL-AF5028M-M42A is an FA / machine-vision lens with 50 mm focal length, M42 × P1.
Image circle Φ29 mm. Aperture F2.8 to F16. Optical distortion 0.05%. Iris: Manual. Focus: Manual. Filter thread M46 × P0.75.
Long focal length → smaller FOV or longer WD; typical when mechanics keep the camera farther from the object. Mount M42 × P1 for larger formats or line-scan; account for flange distance and any adapter in the optical path.
Select variant
SKU: mvl-af5028m-m42a
Specifications
| Certification | RoHS 2.0 |
|---|---|
| Dimension | Φ50 mm × 73.2 mm (Φ2.0" × 2.9") |
| F-number | F2.8 to F16 |
| Filter thread | M46 × P0.75 |
| Flange back length | 12 mm |
| Focal length | 50 mm |
| Focus control | Manual |
| Image size | Φ29 mm |
| Iris control | Manual |
| Magnification range | 0.267 x to 0.001 x |
| Mount | M42 × P1 |
| Optical distortion | 0.05% |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Working distance range | 200 mm to inf mm (tolerance: ±5 mm) |
