MV-IDH3000-13NR-05RN-L
3 mil · 13NR-05RN-L
mv-idh3000-13nr-05rn-l

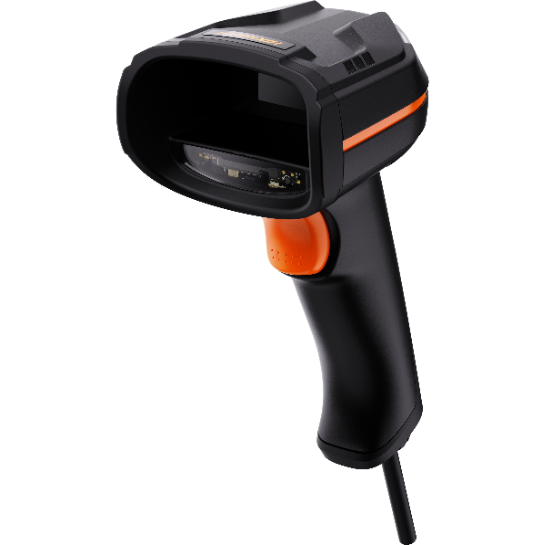

Handheld Code Reader
MV-IDH3000-13NR-05RN-L is a handheld industrial code reader for manual 1D, 2D or DPM scanning at production and logistics stations. Choose the model by supported codes, reading distance, wired or wireless connection and required ingress protection. Test small or low-contrast direct marks before deployment.
Beschikbare configuraties
- mv-idh3000-13nr-05rn-l — 3 mil · 13NR-05RN-L
- mv-idh3000-13nr-05rn-u — 3 mil · 13NR-05RN-U
- mv-idh3000-13sr-05rn-l — 4 mil · 13SR-05RN-L
- mv-idh3000-13sr-05rn-u — 4 mil · 13SR-05RN-U
- mv-idh3000-13nr-05rn-le — 3 mil 4 mil · 13NR-05RN-LE
- mv-idh3000-13sr-05rn-le — 3 mil 4 mil · 13SR-05RN-LE
Select variant
SKU: mv-idh3000-13nr-05rn-l
Specifications
| Aiming system | Cross laser aiming |
|---|---|
| Ambient illumination | 0 lux to 100000 lux |
| Certification | CE, KC |
| Client software | IDMVS |
| Communication protocol | Network interface: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial USB interface: SmartSDK, USB (HID/CDC) |
| Current consumption | USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical) |
| Data interface | Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0, DC terminal |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5") |
| Field of view | Horizontal 40°, vertical 34° |
| Focal length | 4.7 mm |
| Humidity | 20% RH to 80% RH (no condensation) |
| Ingress protection | IP42 |
| Laser safety class | Laser 2 |
| Light source | Red LED |
| Maximum power | 1 mW |
| Min. accuracy | 3 mil |
| Model | 13NR-05RN-L |
| Prompt | LED indicator, buzzer, vibrator |
| Pulse width | 8 ms |
| Resolution | 1280 × 1024 |
| Sensor type | CMOS |
| Symbol contrast | 20% |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Wavelength | 650 nm |
| Weight | Approx. 160 g (0.4 lb.) |
