MV-IDH2000-03SR-03WN-U
640 × 480 · Orange LED · 3.1 mm · 03SR-03WN-U
mv-idh2000-03sr-03wn-u

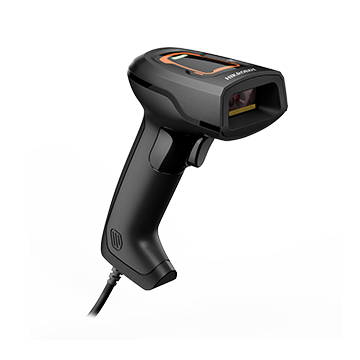

Handheld Code Reader
MV-IDH2000-03SR-03WN-U is a Sedeco handheld code reader selected from live catalog data: CMOS · resolutions 640 × 480, 1280 × 1024 or 640 × 480 1280 × 1024 · USB 2.0 · White LED · IP42 · IDMVS software · 5 VDC. Configure the matching variant for your station; talk to Sedeco for selection support.
Beschikbare configuraties
- mv-idh2000-03sr-03wn-u — 640 × 480 · Orange LED · 3.1 mm · 03SR-03WN-U
- mv-idh2000-13nr-05wn-u — 1280 × 1024 · Cross laser aiming · 4.9 mm · 13NR-05WN-U
- mv-idh2000-13sr-05wn-u — 1280 × 1024 · Cross laser aiming · 4.9 mm · 13SR-05WN-U
- mv-idh2000-13nr-05wp-u-pm — 640 × 480 1280 × 1024 · Orange LED Cross laser aiming · 3.1 mm 4.9 mm 3.9 mm · 13NR-05WP-U-PM
- mv-idh2000-13sr-05wp-u-pm — 640 × 480 1280 × 1024 · Orange LED Cross laser aiming · 3.1 mm 4.9 mm 3.9 mm · 13SR-05WP-U-PM
Select variant
SKU: mv-idh2000-03sr-03wn-u
Specifications
| Ambient illumination | 0 lux to 100000 lux |
|---|---|
| Certification | CE, KC |
| Client software | IDMVS |
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Data interface | USB 2.0 |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Humidity | 5% RH to 95% RH (no condensation) |
| Ingress protection | IP42 |
| Laser safety class | Laser 2 |
| Light source | White LED |
| Maximum power | 1 mW |
| Aiming system | Orange LED |
| Focal length | 3.1 mm |
| Resolution | 640 × 480 |
| Model | 03SR-03WN-U |
| Power supply | 5 VDC |
| Prompt | LED indicator, buzzer, vibrator |
| Pulse width | 8 ms |
| Sensor type | CMOS |
| Symbol contrast | 20% |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Wavelength | 650 nm |
| Weight | Approx. 160 g (0.4 lb.) |
