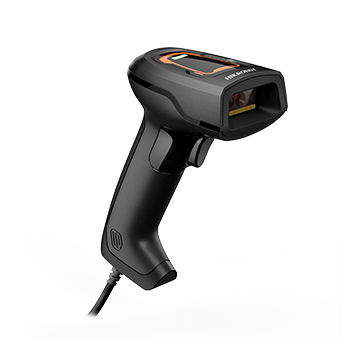

MV-IDH2000-03SR-03WN-U
mv-idh2000-03sr-03wn-u
Handheld Code Reader
MV-IDH2000-03SR-03WN-U is een Sedeco handheld code reader op basis van de live catalogusgegevens: CMOS · resoluties 640 × 480, 1280 × 1024 of 640 × 480 1280 × 1024 · USB 2.0 · White LED · IP42 · IDMVS-software · 5 VDC. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Select variant
SKU: mv-idh2000-03sr-03wn-u
Specifications
| Ambient illumination | 0 lux to 100000 lux |
|---|---|
| Certificering | CE, KC |
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Datainterface | USB 2.0 |
| Afmetingen | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Luchtvochtigheid | 5% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP42 |
| Laser safety class | Laser 2 |
| Lichtbron | Witte LED |
| Maximum power | 1 mW |
| Voeding | 5 VDC |
| Prompt | LED indicator, buzzer, vibrator |
| Pulse width | 8 ms |
| Sensortype | CMOS |
| Symbol contrast | 20% |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Temperatuur | Werktemperatuur: –10 °C to 50 °C (14 °F to 122 °F) Opslagtemperatuur: –20 °C to 60 °C (–4 °F to 140 °F) |
| Wavelength | 650 nm |
| Gewicht | Circa 160 g (0.4 lb.) |
Compare products
MV-IDH2000-03SR-03WN-U
mv-idh2000 · mv-idh2000
Gerelateerde producten

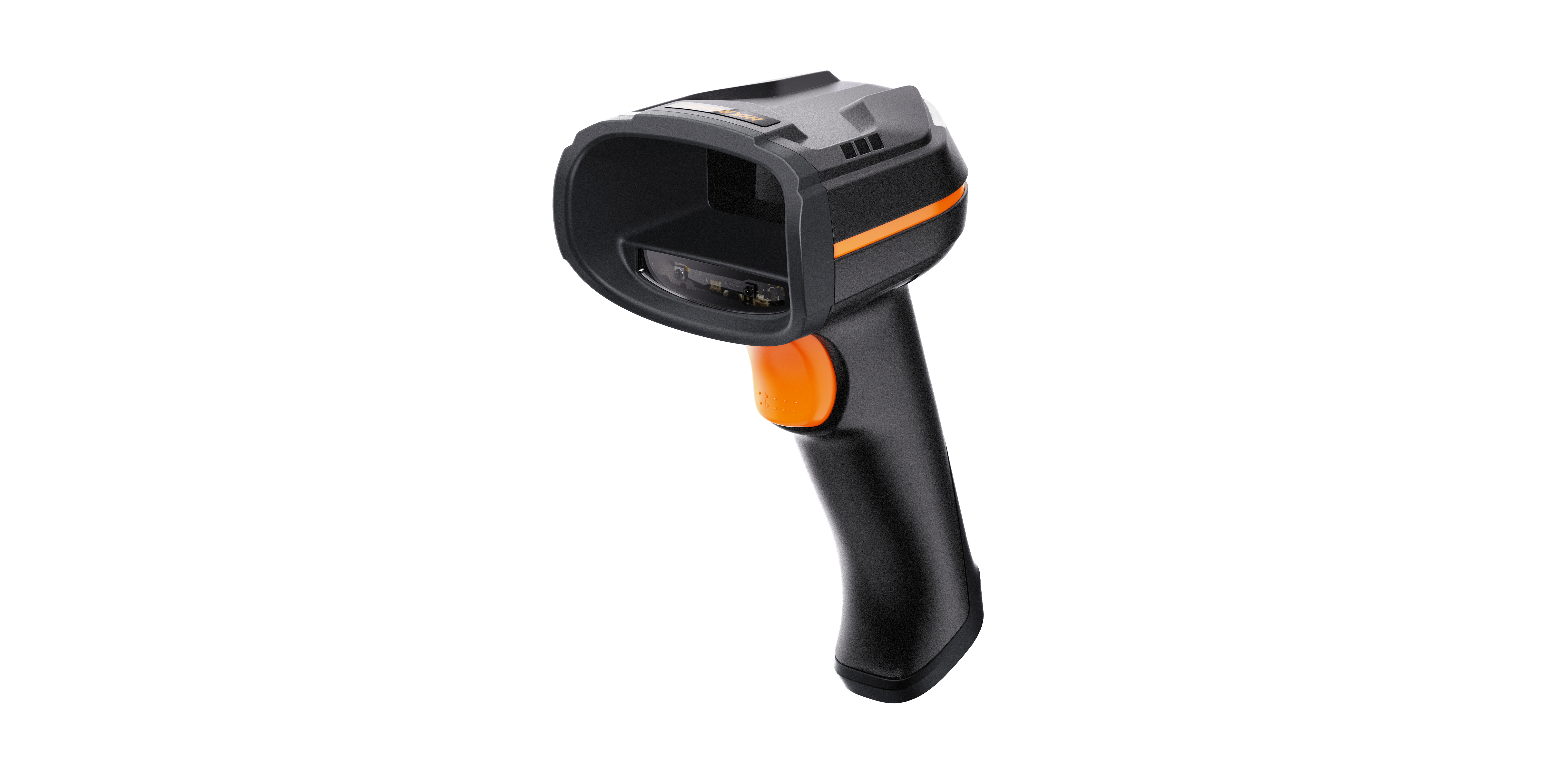

MV-IDH3000B-13NR-05RN
Handheld Code Reader

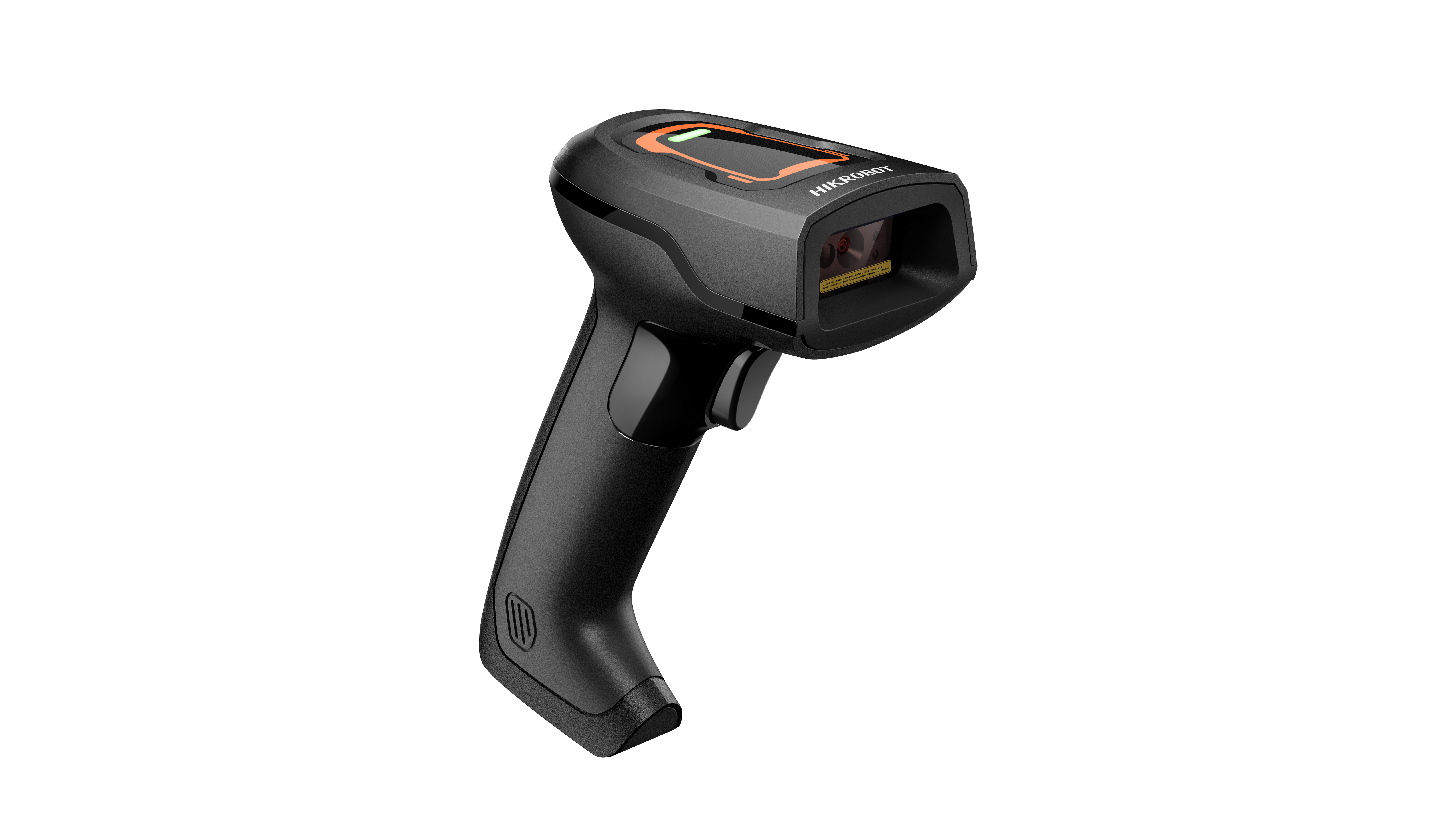

MV-IDH2000RF-03SR-03WN
Handheld Code Reader

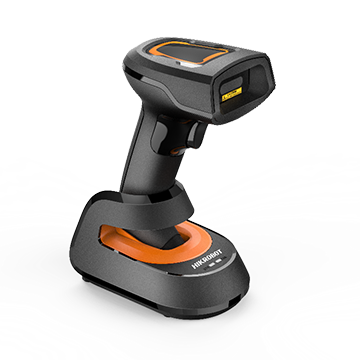

MV-IDH2000B-CBASE-U
