MV-IDH2000RF-03SR-03WN

640 × 480 · Orange LED · Horizontal 42°, vertical 32° · 03SR-03WN

mv-idh2000rf-03sr-03wn

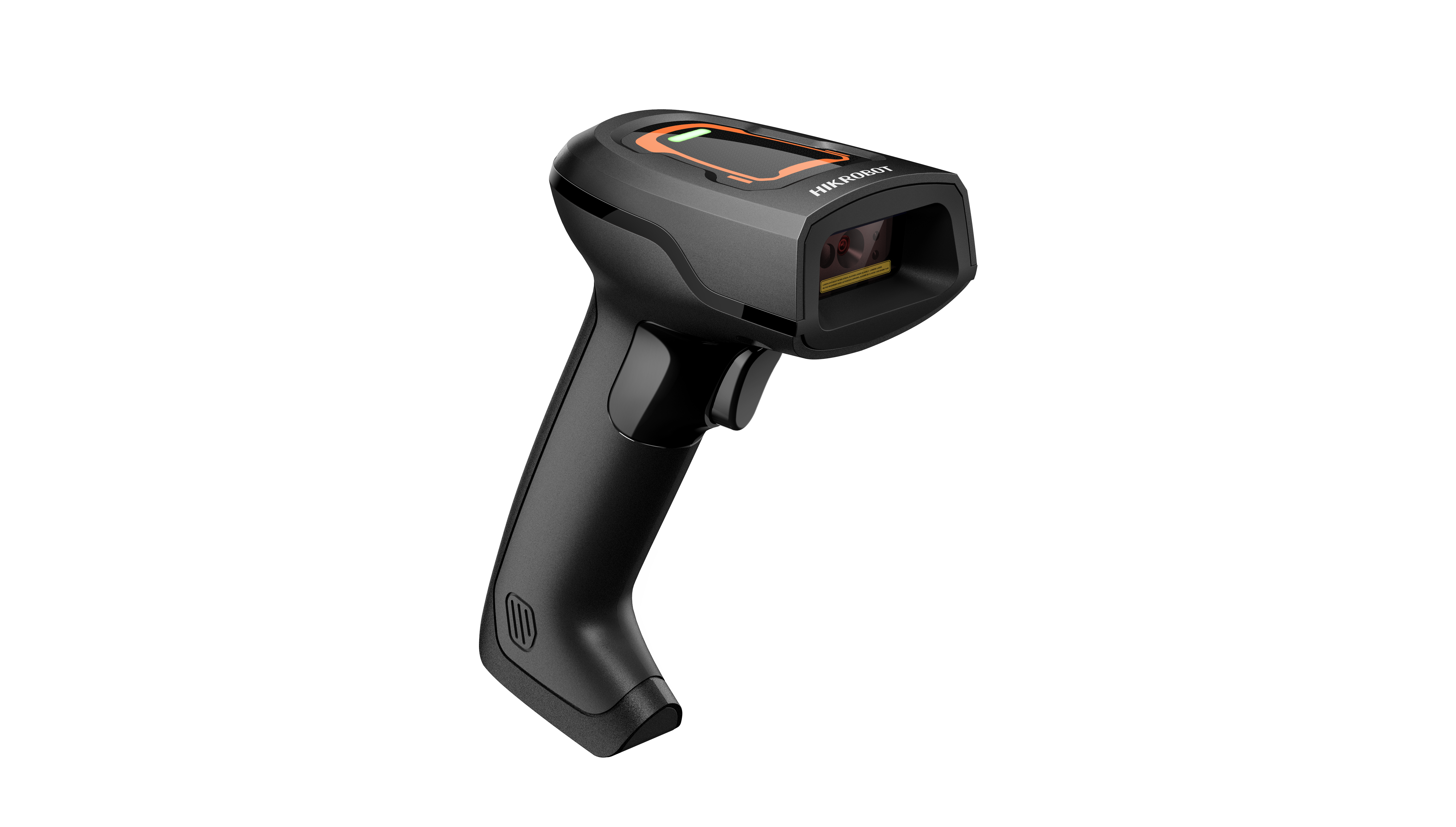

Handheld Code Reader

MV-IDH2000RF-03SR-03WN is a handheld industrial code reader for manual 1D, 2D or DPM scanning at production and logistics stations. Choose the model by supported codes, reading distance, wired or wireless connection and required ingress protection. Test small or low-contrast direct marks before deployment.

Beschikbare configuraties

mv-idh2000rf-03sr-03wn — 640 × 480 · Orange LED · Horizontal 42°, vertical 32° · 03SR-03WN
mv-idh2000rf-13nr-05wn — 1280 × 1024 · Cross laser aiming · Horizontal 39°, vertical 29° · 13NR-05WN
mv-idh2000rf-13sr-05wn — 1280 × 1024 · Cross laser aiming · Horizontal 39°, vertical 29° · 13SR-05WN
mv-idh2000rf-03sr-03wn-uc — 640 × 480 · Orange LED · Horizontal 42°, vertical 32° · 03SR-03WN-UC
mv-idh2000rf-13nr-05wn-uc — 1280 × 1024 · Cross laser aiming · Horizontal 39°, vertical 29° · 13NR-05WN-UC
mv-idh2000rf-13sr-05wn-uc — 1280 × 1024 · Cross laser aiming · Horizontal 39°, vertical 29° · 13SR-05WN-UC

Aantal

Select variant

Resolution

Aiming system

Field of view

Model

SKU: mv-idh2000rf-03sr-03wn

Specifications

Ambient illumination	0 lux to 100000 lux
Battery	2700 mAh, chargeable lithium battery
Beam divergence angle	14.5°
Certification	CE, KC
Charging time	6 h
Client software	IDMVS
Communication protocol	SmartSDK, USB, 2.4 G
Data interface	Code reader: USB 2.0 (Type B) Smart base: USB 2.0 (Type B), USB 2.0 (Type A)
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Dimension	Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Endurance	12 h (interval scanning, once in 2 seconds)
Humidity	5% RH to 95% RH (no condensation)
Ingress protection	Code reader: IP52 Smart base: IP40
Laser safety class	Laser 2
Lens mount	M5.0-mount
Light source	White LED
Max. frame rate	50 fps
Max. power consumption	6 W @ 5 VDC
Maximum power	1 mW
Aiming system	Orange LED
Field of view	Horizontal 42°, vertical 32°
Resolution	640 × 480
Model	03SR-03WN
Power supply	5 VDC
Prompt	LED indicator, buzzer
Pulse width	8 ms
Radio frequency	2.4 G
Repetitive frequency	50 Hz
Sensor type	CMOS, global shutter
Symbol contrast	20%
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Wavelength	650 nm
Weight	Code reader: Approx. 160 g (0.4 lb.) Smart base: Approx. 120 g (0.3 lb.)
Wireless range	80 m (open range)
