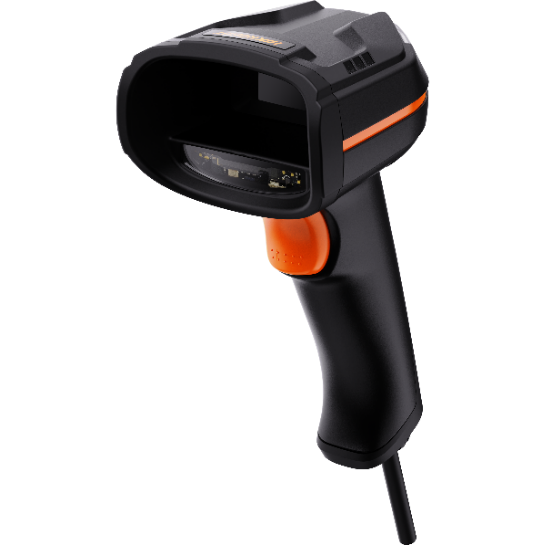

MV-IDH3000-13NR-05RN-L
mv-idh3000-13nr-05rn-l
Handheld Code Reader
MV-IDH3000-13NR-05RN-L is een Sedeco handheld code reader op basis van de live catalogusgegevens: CMOS · 1280 × 1024 · Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0, DC terminal · 4.7 mm brandpuntsafstand · Red LED · IP42 · IDMVS-software. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Select variant
SKU: mv-idh3000-13nr-05rn-l
Specifications
| Richtsysteem | Cross laser aiming |
|---|---|
| Ambient illumination | 0 lux to 100000 lux |
| Certificering | CE, KC |
| Clientsoftware | IDMVS |
| Communication protocol | Network interface: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial USB interface: SmartSDK, USB (HID/CDC) |
| Current consumption | USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical) |
| Datainterface | Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0, DC terminal |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Afmetingen | 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5") |
| Field of view | Horizontal 40°, vertical 34° |
| Brandpuntsafstand | 4.7 mm |
| Luchtvochtigheid | 20% RH to 80% RH (geen condensatie) |
| Beschermingsgraad | IP42 |
| Laser safety class | Laser 2 |
| Lichtbron | Red LED |
| Maximum power | 1 mW |
| Prompt | LED indicator, buzzer, vibrator |
| Pulse width | 8 ms |
| Resolutie | 1280 × 1024 |
| Sensortype | CMOS |
| Symbol contrast | 20% |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Temperatuur | Werktemperatuur: –10 °C to 50 °C (14 °F to 122 °F) Opslagtemperatuur: –20 °C to 60 °C (–4 °F to 140 °F) |
| Wavelength | 650 nm |
| Gewicht | Circa 160 g (0.4 lb.) |
