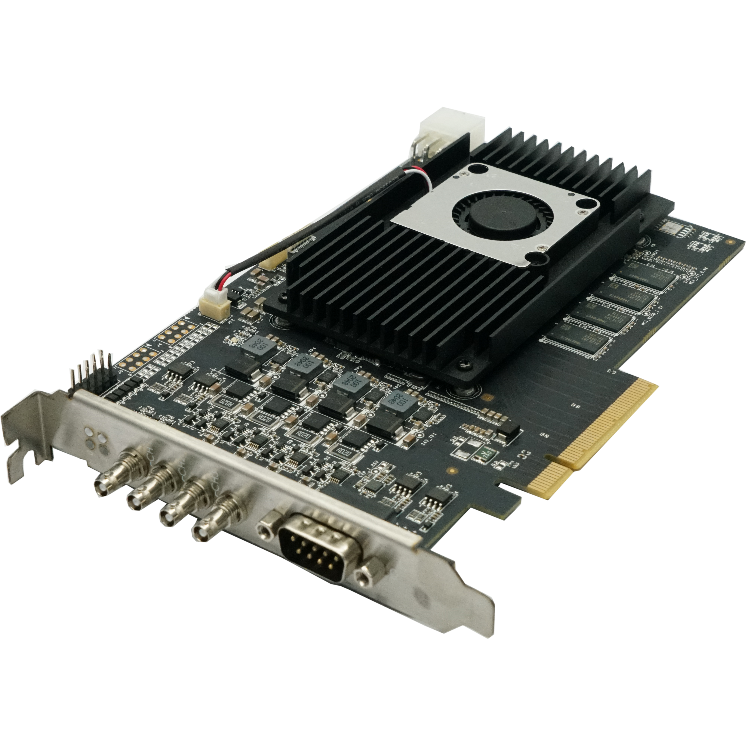

MV-GY1004IOL
mv-gy1004iol
Vision Components
MV-GY1004IOL is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Select variant
SKU: mv-gy1004iol
Prijs op aanvraag
Specifications
| Camera connection speed | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
|---|---|
| Camera quantity supported | 4 at most, supports connecting 1 to 4 camera(s) |
| Camera type supported | CXP-6/CXP-12 connector industrial camera |
| Certification | CE, RoHS, KC |
| Client software | MVS |
| Connector | DB9 and built-in pin header |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Humidity | 10% RH to 95% RH (no condensation) |
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output Line 2/3 supports 3.3 VDC to 24 VDC input and output |
| Indicator | 1 |
| Interconnect | PCI-E gen3 × 8 |
| Interface | HD-BNC × 4 |
| On-board memory | 4 GB DDR4-RAM |
| Operating system | Windows 7/10/11 |
| Pixel format | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| Power consumption | Typ. 20 W (without PoCXP) |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Standard | CoaXPress 2.1 |
| Stream | 4 |
| Stream indicator | 4 |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
