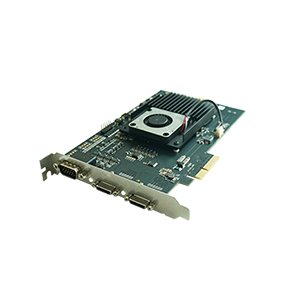

MV-GC1002-V2

mv-gc1002-v2

Vision Components

MV-GC1002-V2 is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.

Select variant

SKU: mv-gc1002-v2
Prijs op aanvraag

Specifications

Camera connection speed6.8 Gbps
Camera quantity supported2 at most
Camera type supportedCamera Link industrial camera
CertificationCE, RoHS, UL
Client softwareMVS
Configuration modeBase, Medium, Full, 80-bit
ConnectorDB15 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10 pin hole)
Delivery bandwidth1720 MB/s (max. transmission bandwidth) 1600 MB/s (sustained transmission bandwidth)
Dimension181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Humidity10% RH to 95% RH (no condensation)
I/O TypeConfigurable input/output × 11, compatible with single-ended/differential and support cascading Baffle I/O: Line 0 to Line 6 support 3.3 VDC to 24 VDC input/output Pin header I/O: Line 7 to Line 10 support 3.3 VDC to 12 VDC input, and 3.3 VDC output
Indicator1
InterconnectPCI-E gen2 × 4
InterfaceSDR × 2
On-board memory1 GB DDR3-RAM
Operating systemWindows 7/10/11, Ubuntu16.04 to 22.04 on Linux
Pixel clock20 MHz to 85 MHz
Pixel formatMono 8/10/12/16 Bayer 8/10/12/16 RGB 8, BGR 8
Power consumptionTyp. 7 W (without PoCL)
Power outputPoCL, each channel provides 4 W @ 12 VDC at most
StandardCamera Link 2.1
Stream2
Stream indicator2
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
