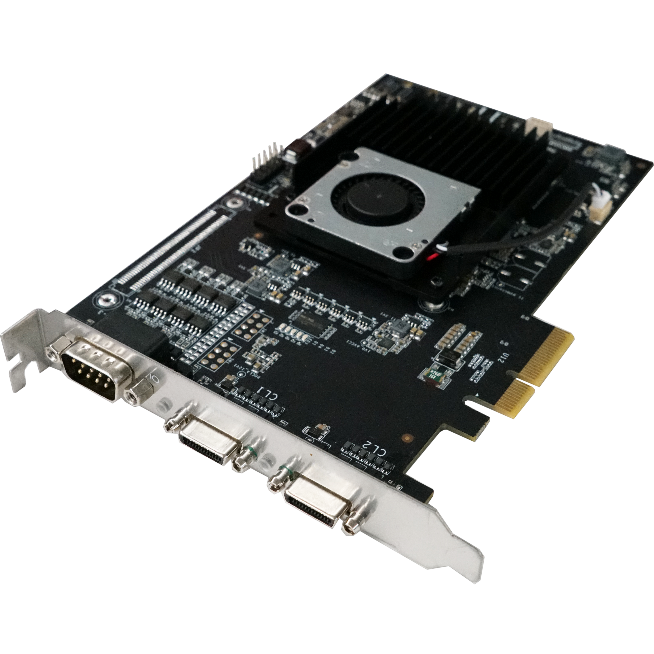

MV-GC1102IOL
mv-gc1102iol
Vision Components
MV-GC1102IOL is a vision-system component for connecting, powering or interfacing industrial cameras. Interface compatibility, connection count, data load and mechanical fit determine whether the component suits the system.
Out of stock
Select variant
SKU: mv-gc1102iol
Specifications
| Camera connection speed | 6.8 Gbps |
|---|---|
| Camera quantity supported | 2 at most |
| Camera type supported | Camera Link industrial camera |
| Certification | CE, RoHS, KC |
| Client software | MVS |
| Configuration mode | Base, Medium, Full, 80-bit, Lite |
| Connector | DB9 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Humidity | 10% to 95% RH, non-condensing |
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential Line 2/3 supports 3.3 VDC to 26 VDC input and 3.3 VDC to 26 VDC output Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output |
| Indicator | 1 |
| Interconnect | PCI-E gen2 × 4 |
| Interface | SDR × 2 |
| On-board memory | 1 GB DDR3-RAM |
| Operating system | 32/64-bit Windows 7/10 |
| Pixel clock | 20 MHz to 85 MHz |
| Pixel format | Mono 8/10/12/16, Bayer 8/10/12/16, RGB 8, BGR 8 |
| Power consumption | Typ. 9 W (without PoCL) |
| Power output | PoCL, each channel provides 4 W@ 12 VDC at most |
| Standard | Camera Link 2.1 |
| Stream | 2 |
| Stream indicator | 2 |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F) |
