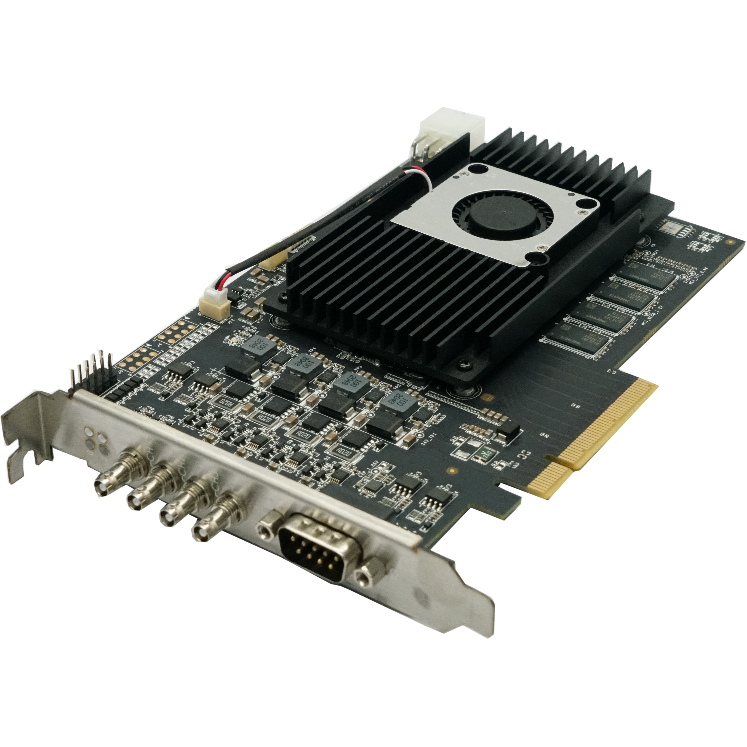

MV-GY1004IOL
mv-gy1004iol
Vision Components
MV-GY1004IOL is een Sedeco vision-component op basis van de live catalogusgegevens: MVS-software · Stream: 4 · Standard: CoaXPress 2.1 · Connector: DB9 and built-in pin header · Indicator: 1. Configureer de passende variant voor uw station; neem contact op met Sedeco voor selectieondersteuning.
Select variant
SKU: mv-gy1004iol
Specifications
| Camera connection speed | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
|---|---|
| Camera quantity supported | 4 at most, supports connecting 1 tot 4 camera(s) |
| Camera type supported | CXP-6/CXP-12 connector industrial camera |
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS |
| Connector | DB9 and built-in pin header |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Afmetingen | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Luchtvochtigheid | 10% RH to 95% RH (geen condensatie) |
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output Line 2/3 supports 3.3 VDC to 24 VDC input and output |
| Indicator | 1 |
| Interconnect | PCI-E gen3 × 8 |
| Interface | HD-BNC × 4 |
| On-board memory | 4 GB DDR4-RAM |
| Besturingssysteem | Windows 7/10/11 |
| Pixelformaat | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| Stroomverbruik | Typ. 20 W (without PoCXP) |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Standard | CoaXPress 2.1 |
| Stream | 4 |
| Stream indicator | 4 |
| Temperatuur | Werktemperatuur: 0 °C to 60 °C (32 °F to 140 °F) Opslagtemperatuur: –20 °C to 70 °C (–4 °F to 158 °F) |
