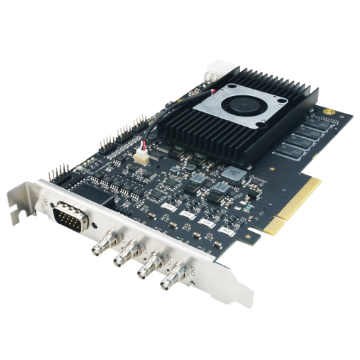

MV-GY1004
MV-GY1004
Vision Components
MV-GY1004 is a vision-system component for connecting, powering or interfacing industrial cameras. Interface compatibility, connection count, data load and mechanical fit determine whether the component suits the system.
Select variant
SKU: MV-GY1004
Specifications
| Brand | Hikrobot |
|---|---|
| Bus indicator | 1 |
| Camera connection speed | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Camera connection speed | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Camera quantity supported | 4 at most, supports connecting 1 to 4 camera(s) |
| Camera type supported | CXP-6/CXP-12 connector industrial camera |
| Interface | HD-BNC × 4 |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Standard | CoaXPress 2.1 |
| Stream | 4 |
| Stream indicator | 4 |
| Camera quantity supported | 4 at most, supports connecting 1 to 4 camera(s) |
| Camera type supported | CXP-6/CXP-12 connector industrial camera |
| Category | Vision Components |
| Certification | CE, RoHS, KC |
| Client software | MVS |
| Connector | Connector of I/O on bracket: DB15 male connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Documents | MV_GY1004_V2_STREAM_1_STD_V2.1.0_260310_HIKROBOT.zip, MV-GY1000（V2.0）.zip, UD44411B_CoaXPress-12 Frame Grabber_User Manual_V2.1.0_20260703.pdf, MV-GY1000 V2.0 CoaXPress Frame Grabber_datasheet_20260528.pdf |
| Power consumption | Typ. 16.8 W (without PoCXP) |
| Certification | CE, RoHS, KC |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
| GPIO: Connector | Connector of I/O on bracket: DB15 male connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| GPIO: I/O Type | Configurable input/output × 11, compatible with single-ended/differential I/O on bracket: Line 0 to Line 6 supports input and output (3.3 V to 24 V). I/O on PCB: Line 7 to Line 10 supports input and output (3.3 V to 24 V). |
| Bus indicator | 1 |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Interconnect | PCI-E gen3 × 8 |
| Humidity | 10% RH to 95% RH (no condensation) |
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential I/O on bracket: Line 0 to Line 6 supports input and output (3.3 V to 24 V). I/O on PCB: Line 7 to Line 10 supports input and output (3.3 V to 24 V). |
| Interconnect | PCI-E gen3 × 8 |
| Interface | HD-BNC × 4 |
| Material code | 310102364 |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Humidity | 10% RH to 95% RH (no condensation) |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Memory: On-board memory | 4 GB DDR4-RAM |
| Model | MV-GY1004 |
| Product Model | MV-GY1004 |
| Type | Quad CXP-12 Frame GrabberV2.0 |
| On-board memory | 4 GB DDR4-RAM |
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on Linux |
| Pixel format | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| Power consumption | Typ. 16.8 W (without PoCXP) |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Processing feature: Pixel format | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| Related products | MV-CH250-90YM-M58S-NN, MV-CH050-90Y1M-NN V2, MV-CH120-90Y1C-NN |
| Series | Frame Grabber |
| Standard | CoaXPress 2.1 |
| Stream | 4 |
| Stream indicator | 4 |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
