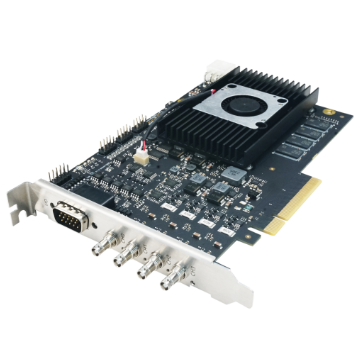

MV-GY1004
MV-GY1004
Vision Components
MV-GY1004 is een vision-component voor het aansluiten, voeden of koppelen van industriële camera’s. Gebruik het alleen met de opgegeven connector, interface en bandbreedte of elektrische specificatie. Controleer kabellengte, connectororiëntatie en compatibiliteit met camera en hostsysteem.
Select variant
SKU: MV-GY1004
Prijs op aanvraag
Specifications
| Merk | Hikrobot |
|---|---|
| Bus indicator | 1 |
| Cameraverbindingssnelheid | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Cameraverbindingssnelheid | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Aantal ondersteunde camera’s | 4 maximaal, Ondersteunt connecting 1 to 4 camera(s) |
| Ondersteunde cameratypen | CXP-6/CXP-12 connector industrial camera |
| Interface | HD-BNC × 4 |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC maximaal |
| Standaard | CoaXPress 2.1 |
| Streams | 4 |
| Stream indicator | 4 |
| Aantal ondersteunde camera’s | 4 maximaal, Ondersteunt connecting 1 to 4 camera(s) |
| Ondersteunde cameratypen | CXP-6/CXP-12 connector industrial camera |
| Categorie | Vision Components |
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS |
| Connector | Connector of I/O on bracket: DB15 male connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Doorvoerbandbreedte | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Afmetingen | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Documents | MV_GY1004_V2_STREAM_1_STD_V2.1.0_260310_HIKROBOT.zip, MV-GY1000（V2.0）.zip, UD44411B_CoaXPress-12 Frame Grabber_User Manual_V2.1.0_20260703.pdf, MV-GY1000 V2.0 CoaXPress Frame Grabber_datasheet_20260528.pdf |
| Opgenomen vermogen | Typ. 16.8 W (without PoCXP) |
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS |
| Besturingssysteem | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
| GPIO: Connector | Connector of I/O on bracket: DB15 male connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| GPIO: I/O Type | Configurable ingang/uitgang × 11, compatible with single-ended/differential I/O on bracket: Line 0 to Line 6 Ondersteunt ingang and uitgang (3.3 V to 24 V). I/O on PCB: Line 7 to Line 10 Ondersteunt ingang and uitgang (3.3 V to 24 V). |
| Bus indicator | 1 |
| Doorvoerbandbreedte | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Interconnect | PCI-E gen3 × 8 |
| Luchtvochtigheid | 10% RH to 95% RH (niet-condenserend) |
| I/O Type | Configurable ingang/uitgang × 11, compatible with single-ended/differential I/O on bracket: Line 0 to Line 6 Ondersteunt ingang and uitgang (3.3 V to 24 V). I/O on PCB: Line 7 to Line 10 Ondersteunt ingang and uitgang (3.3 V to 24 V). |
| Interconnect | PCI-E gen3 × 8 |
| Interface | HD-BNC × 4 |
| Materiaalcode | 310102364 |
| Afmetingen | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Luchtvochtigheid | 10% RH to 95% RH (niet-condenserend) |
| Temperatuur | In bedrijf temperature: 0 °C to 55 °C (32 °F to 131 °F) Opslag temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Memory: On-board memory | 4 GB DDR4-RAM |
| Model | MV-GY1004 |
| Productmodel | MV-GY1004 |
| Type | Quad CXP-12 Frame GrabberV2.0 |
| On-board memory | 4 GB DDR4-RAM |
| Besturingssysteem | Windows 7/10/11, Ubuntu 18.04 to 24.04 on Linux |
| Pixelformaat | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| Opgenomen vermogen | Typ. 16.8 W (without PoCXP) |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC maximaal |
| Processing feature: Pixel format | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| Related products | MV-CH250-90YM-M58S-NN, MV-CH050-90Y1M-NN V2, MV-CH120-90Y1C-NN |
| Serie | Frame Grabber |
| Standaard | CoaXPress 2.1 |
| Streams | 4 |
| Stream indicator | 4 |
| Temperatuur | In bedrijf temperature: 0 °C to 55 °C (32 °F to 131 °F) Opslag temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
