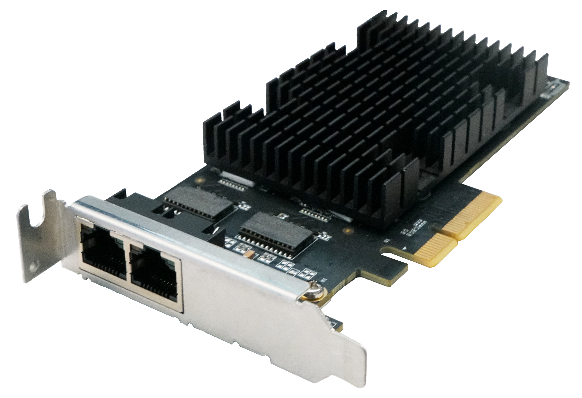

MV-GE2002L V2.0
mv-ge2002l-v2-0
Vision Components
MV-GE2002L V2.0 is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Select variant
SKU: mv-ge2002l-v2-0
Prijs op aanvraag
Specifications
| Camera connection speed | 10/100/1000 Mbps |
|---|---|
| Camera quantity supported | 2 at most |
| Camera type supported | GigE industrial camera |
| Certification | CE, RoHS, KC |
| Delivery bandwidth | 860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth) |
| Dimension | 161.4 mm × 79.2 mm × 20.7 mm (6.4" × 3.1" × 0.8") |
| Humidity | 10% RH to 95% RH (no condensation) |
| Interconnect | PCI-E gen2 × 4 |
| Interface | RJ45 × 2 |
| Operating system | Windows 7/10/11, Linux |
| Power consumption | Typ. 4.3 W |
| Standard | IEEE 802.3 |
| Stream | 2 |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Weight | 125 g (0.3 lb.) |
