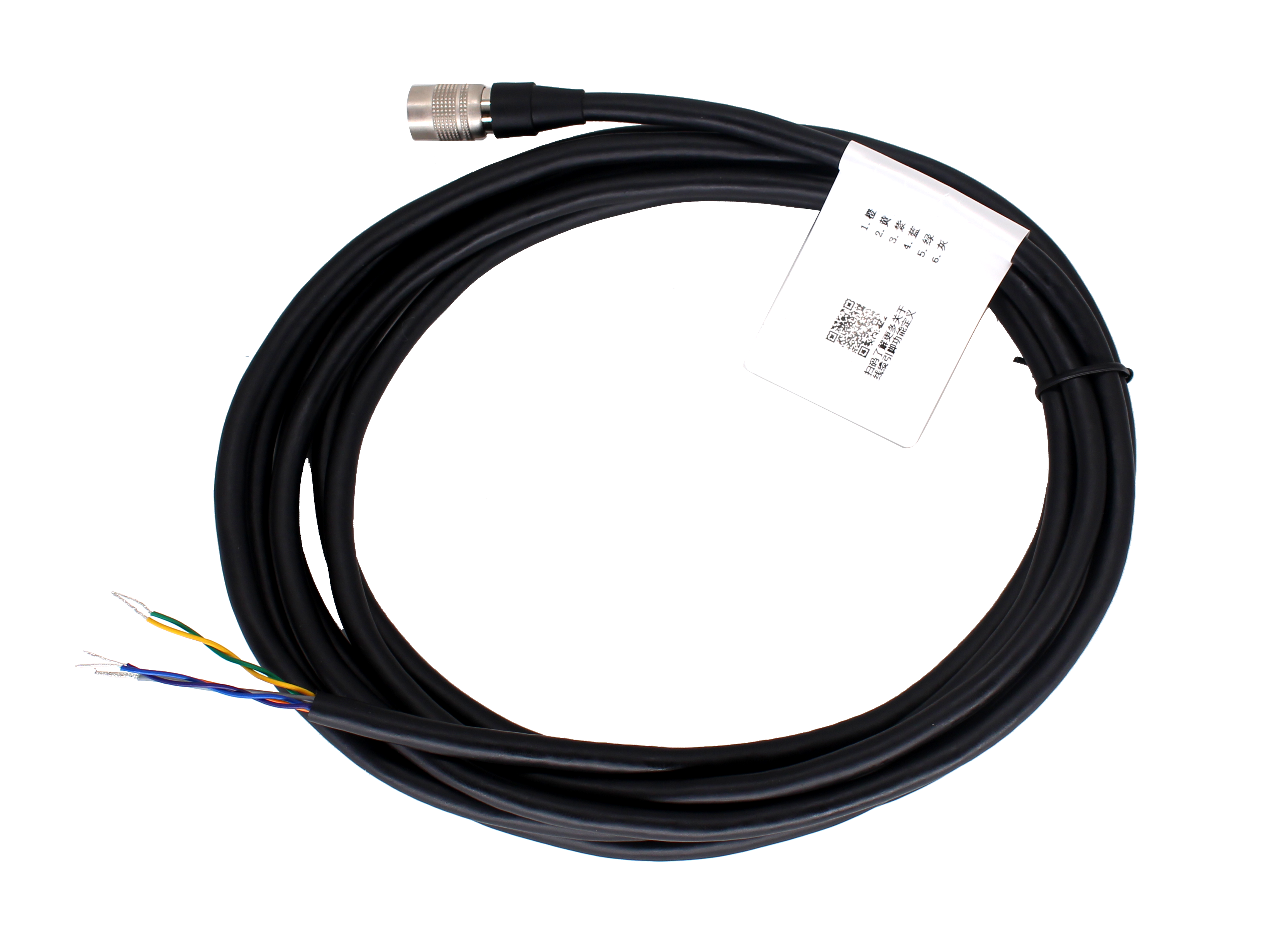

MV-ACP H6p-to-Open Cable

Standard · HF · 3 m

mv-acp-h6p-open-hf-3m

Accessories

MV-ACP-H6p-open-HF-3m is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.

Beschikbare configuraties

mv-acp-h6p-open-hf-3m — Standard · HF · 3 m
mv-acp-h6p-open-hf-5m — Standard · HF · 5 m
mv-acp-h6p-open-hf-7m — Standard · HF · 7 m
mv-acp-h6p-open-hf-10m — Standard · HF · 10 m
mv-acp-h6p-open-hf-15m — Standard · HF · 15 m
mv-acp-h6p-open-hf-30m — Standard · HF · 30 m
mv-acp-h6p-open-sf-3m — Standard · SF · 3 m
mv-acp-h6p-open-sf-5m — Standard · SF · 5 m
mv-acp-h6p-open-sf-7m — Standard · SF · 7 m
mv-acp-h6p-open-sf-10m — Standard · SF · 10 m
mv-acp-h6p-open-sf-15m — Standard · SF · 15 m
mv-acp-h6p-open-st-1m — Standard · ST · 1 m
mv-acp-h6p-open-st-3m — Standard · ST · 3 m
mv-acp-h6p-open-st-5m — Standard · ST · 5 m
mv-acp-h6p-open-st-7m — Standard · ST · 7 m
mv-acp-h6p-open-st-10m — Standard · ST · 10 m
mv-acp-h6p-open-st-15m — Standard · ST · 15 m
mv-acp-h6p-open-st-30m — Standard · ST · 30 m
mv-acp-h6p-open-st-60m — Standard · ST · 60 m
mv-acp-h6p(left)-open-hf-3m — Left · HF · 3 m
mv-acp-h6p(left)-open-hf-5m — Left · HF · 5 m
mv-acp-h6p(left)-open-hf-15m — Left · HF · 15 m
mv-acp-h6p(left)-open-st-3m — Left · ST · 3 m
mv-acp-h6p(left)-open-st-5m — Left · ST · 5 m
mv-acp-h6p(left)-open-st-15m — Left · ST · 15 m

Aantal

Select variant

Orientation

Cable type

Length

SKU: mv-acp-h6p-open-hf-3m

Prijs op aanvraag

Specifications

Applicable scenario	Tank chain
Cable color	Black
Cable diameter	5.5 mm
Cable mechanical	2P28AWG+2C23AWG+AB
Certification	RoHS2.0
Connector durability	≥ 750 cycles
Connector model	made in China
End A connector	P7 6-pin,Femal,Black insulator,Solder type
End B connector	Open
Jacket	PVC
Max. ±180° torsional cycles	≥ 5 million times
Max. ±90° bending cycles	≥ 3 million times
Max. U-type bending cycles	≥ 5 million times
Max. voltage	30 VDC
Min. bending radius	66 mm
Cable type	HF
Length	3 m
Orientation	Standard
Packaging	Individual package
Working temperature	-20°C~80°C
