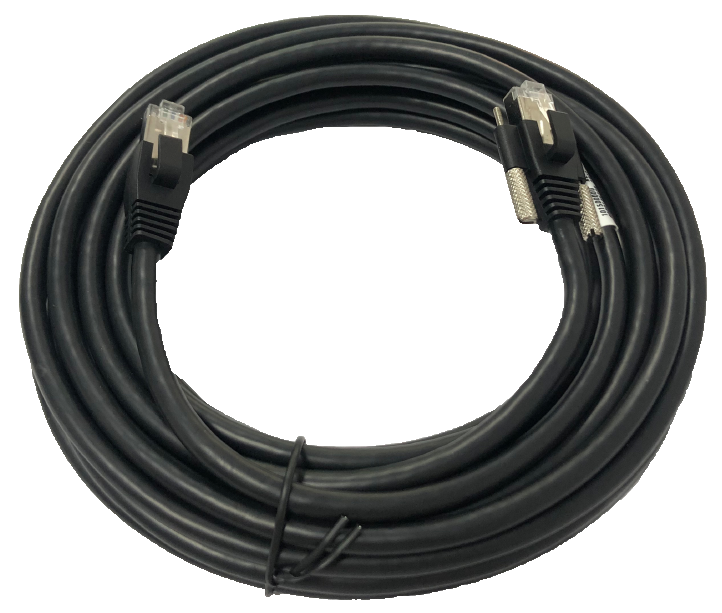

MV-ACG-RJ45s-RJ45

mv-acg-rj45s-rj45-st-5m

Accessories

MV-ACG-RJ45s-RJ45 is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.

Available configurations

mv-acg-rj45s-rj45-st-3m
mv-acg-rj45s-rj45-st-5m
mv-acg-rj45s-rj45-st-1m
mv-acg-rj45s-rj45-st-15m
mv-acg-rj45s-rj45-sf-10m
mv-acg-rj45s-rj45-hf-5m
mv-acg-rj45s-rj45-hf-3m
mv-acg-rj45s-rj45-sf-3m
mv-acg-rj45s-rj45-st-30m
mv-acg-rj45s-rj45-st-10m
mv-acg-rj45s-rj45-hf-10m
mv-acg-rj45s-rj45-sf-5m
mv-acg-rj45s-rj45-hf-30m
mv-acg-rj45s-rj45-hf-7m
mv-acg-rj45s-rj45-hf-15m
mv-acg-rj45s-rj45-st-7m
mv-acg-rj45s-rj45-st-60m
mv-acg-rj45s-rj45-sf-15m
mv-acg-rj45s-rj45-sf-7m

Qty

Select variant

SKU: mv-acg-rj45s-rj45-st-5m

Specifications

Applicable scenario	Static scenes
Cable color	Black
Cable diameter	6.2 mm
Cable mechanical	4P*26#+AB
Certification	RoHS2.0,UL
Connector durability	≥750 cycles
End A connector	RJ45 (with locking stud)
End B connector	RJ45
Jacket	PVC
Max. voltage	30 VDC
Min. bending radius	74.4 mm
Packaging	Individual package
Working temperature	-20°C~ 75°C
