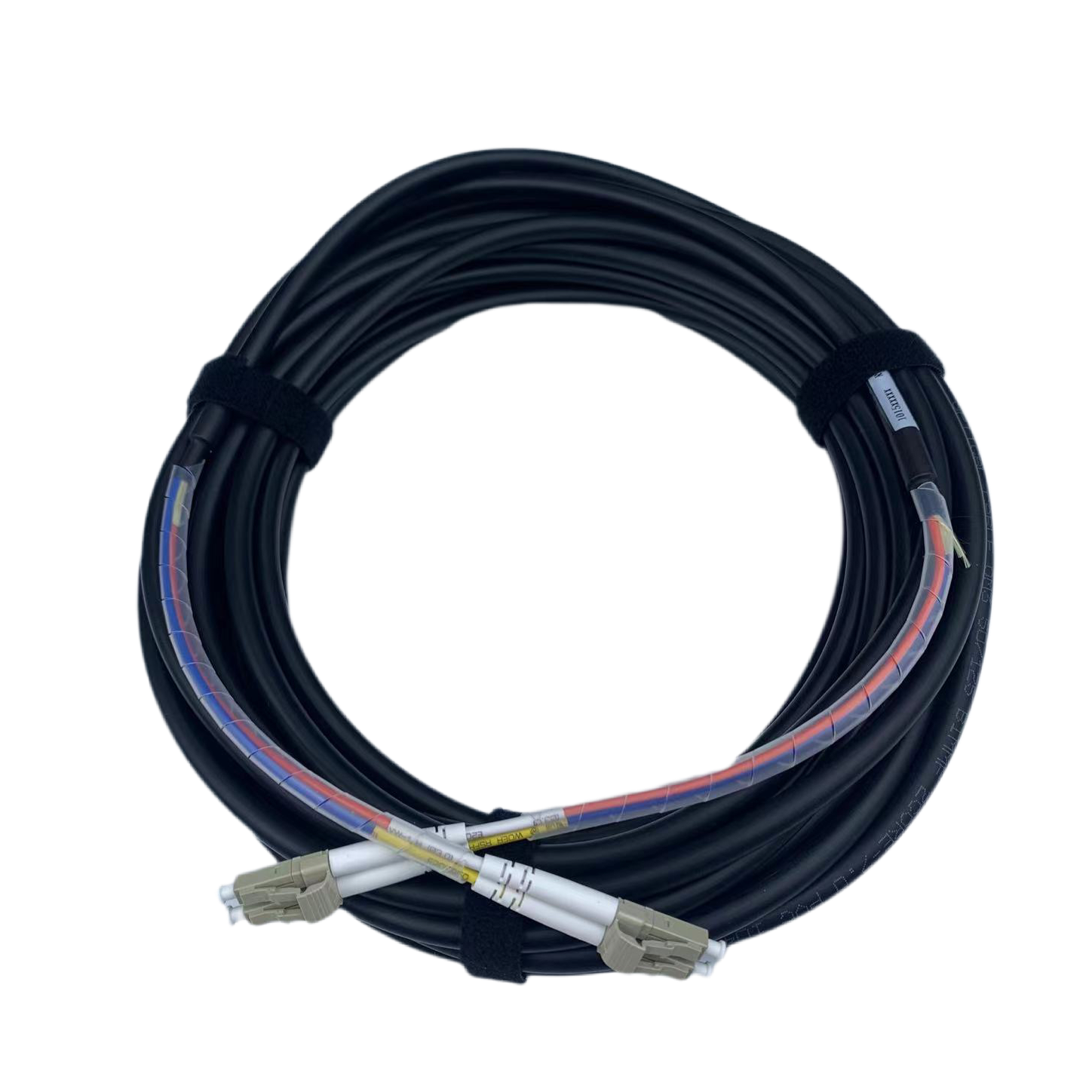

MV-AC10G-2LC-2LC-ST-3m
3 m
mv-ac10g-2lc-2lc-st-3m
Accessories
MV-AC10G-2LC-2LC-ST-3m is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Beschikbare configuraties
- mv-ac10g-2lc-2lc-st-3m — 3 m
- mv-ac10g-2lc-2lc-st-5m — 5 m
- mv-ac10g-2lc-2lc-st-10m — 10 m
Select variant
SKU: mv-ac10g-2lc-2lc-st-3m
Prijs op aanvraag
Specifications
| Applicable scenario | Static scenes |
|---|---|
| Cable color | Black |
| Cable diameter | 6.5 mm |
| Central wavelength | 850 nm |
| Certification | RoHS |
| Connector durability | 200 mating cycles |
| End A connector | LC (2-core) |
| End B connector | LC (2-core) |
| Fiber type | Multimode 50 μm/125 μm |
| Insertion loss | ≤ 0.30 dB |
| Length | 3 m |
| Packaging | Individual package |
| Return loss | ≥ 36 dB |
| Working temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
