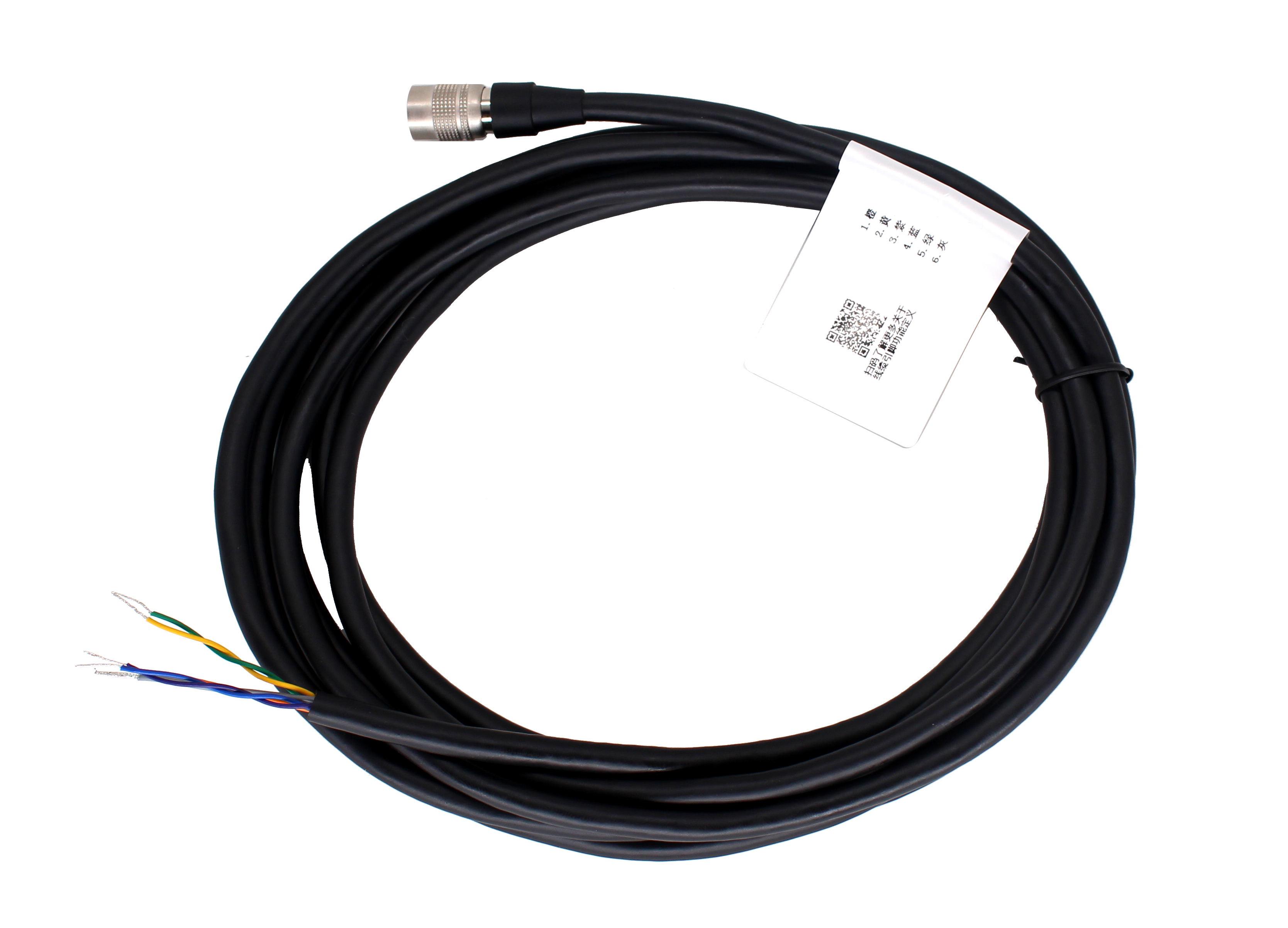

MV-ACP H6p-to-Open Cable

Standard · HF · 3 m

mv-acp-h6p-open-hf-3m

Accessories

MV-ACP-H6p-open-HF-3m is een vision-component voor het aansluiten, voeden of koppelen van industriële camera’s. Connectortype, kabellengte en compatibiliteit met camera en host moeten bij de installatie passen.

Beschikbare configuraties

mv-acp-h6p-open-hf-3m — Standard · HF · 3 m
mv-acp-h6p-open-hf-5m — Standard · HF · 5 m
mv-acp-h6p-open-hf-7m — Standard · HF · 7 m
mv-acp-h6p-open-hf-10m — Standard · HF · 10 m
mv-acp-h6p-open-hf-15m — Standard · HF · 15 m
mv-acp-h6p-open-hf-30m — Standard · HF · 30 m
mv-acp-h6p-open-sf-3m — Standard · SF · 3 m
mv-acp-h6p-open-sf-5m — Standard · SF · 5 m
mv-acp-h6p-open-sf-7m — Standard · SF · 7 m
mv-acp-h6p-open-sf-10m — Standard · SF · 10 m
mv-acp-h6p-open-sf-15m — Standard · SF · 15 m
mv-acp-h6p-open-st-1m — Standard · ST · 1 m
mv-acp-h6p-open-st-3m — Standard · ST · 3 m
mv-acp-h6p-open-st-5m — Standard · ST · 5 m
mv-acp-h6p-open-st-7m — Standard · ST · 7 m
mv-acp-h6p-open-st-10m — Standard · ST · 10 m
mv-acp-h6p-open-st-15m — Standard · ST · 15 m
mv-acp-h6p-open-st-30m — Standard · ST · 30 m
mv-acp-h6p-open-st-60m — Standard · ST · 60 m
mv-acp-h6p(left)-open-hf-3m — Left · HF · 3 m
mv-acp-h6p(left)-open-hf-5m — Left · HF · 5 m
mv-acp-h6p(left)-open-hf-15m — Left · HF · 15 m
mv-acp-h6p(left)-open-st-3m — Left · ST · 3 m
mv-acp-h6p(left)-open-st-5m — Left · ST · 5 m
mv-acp-h6p(left)-open-st-15m — Left · ST · 15 m

Aantal

Select variant

Orientatie

Kabeltype

Length

SKU: mv-acp-h6p-open-hf-3m

Specificaties

Applicable scenario	Tank chain
Cable color	Black
Cable diameter	5.5 mm
Cable mechanical	2P28AWG+2C23AWG+AB
Certificering	RoHS2.0
Connector durability	≥ 750 cycles
Connector model	made in China
End A connector	P7 6-pin,Femal,Black insulator,Solder type
End B connector	Open
Jacket	PVC
Max. ±180° torsional cycles	≥ 5 million times
Max. ±90° bending cycles	≥ 3 million times
Max. U-type bending cycles	≥ 5 million times
Max. voltage	30 VDC
Min. bending radius	66 mm
Kabeltype	HF
Length	3 m
Orientatie	Standard
Packaging	Individual package
Working temperature	-20°C~80°C
