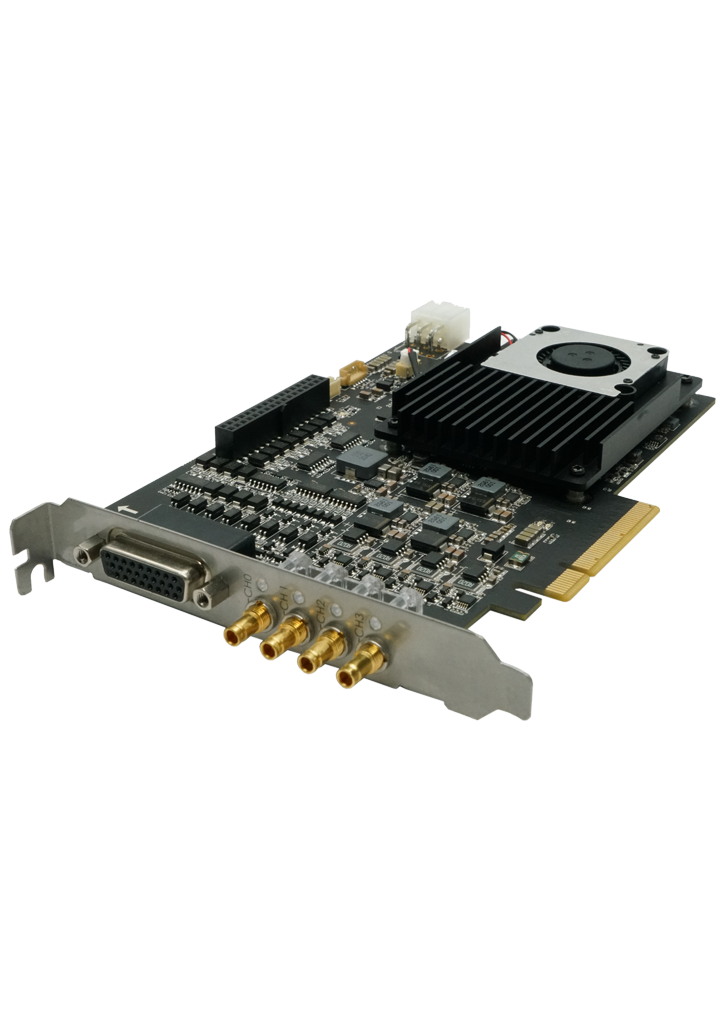

MV-GX1004
mv-gx1004
Vision Components
MV-GX1004 is a Sedeco vision component selected from live catalog data: MVS software · Stream: 4 · Standard: CoaXPress 1.0/1.1 · Connector: HD26 female header · Interface: DIN 1.0/2.3 × 4. Configure the matching variant for your station; talk to Sedeco for selection support.
Select variant
SKU: mv-gx1004
Specifications
| Bus indicator | 1 |
|---|---|
| Camera connection speed | 1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6) |
| Camera quantity supported | 4 at most |
| Camera type supported | CXP-6 connector industrial camera |
| Certification | RoHS, CE, KC |
| Client software | MVS |
| Connector | HD26 female header |
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Humidity | 10% RH to 95% RH (no condensation) |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Interconnect | PCI-E gen2 × 8 |
| Interface | DIN 1.0/2.3 × 4 |
| On-board memory | 4 GB DDR3-RAM |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Pixel format | Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8 |
| Power consumption | Typ. 14.4 W (without PoCXP) |
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Standard | CoaXPress 1.0/1.1 |
| Stream | 4 |
| Stream indicator | 4 |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
