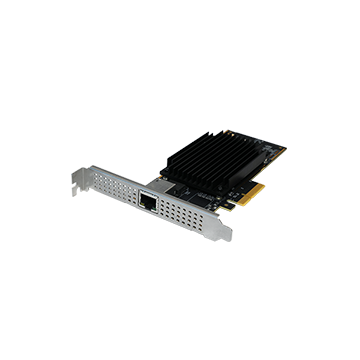

MV-GT2001
mv-gt2001
Vision Components
MV-GT2001 is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Select variant
SKU: mv-gt2001
Prijs op aanvraag
Specifications
| Camera connection speed | 1000 Mbps / 10000 Mbps |
|---|---|
| Camera quantity supported | 1 at most |
| Camera type supported | 10 GigE industrial camera |
| Certification | RoHS, CE, KC |
| Delivery bandwidth | 31.5 Gbps (max. transmission bandwidth) 20 Gbps (sustained transmission bandwidth) |
| Dimension | 160.9 mm × 104.9 mm × 21.6 mm (6.3" × 4.1" × 0.9") |
| Humidity | 10% RH to 95% RH (no condensation) |
| Interconnect | PCI-E gen3 × 4 |
| Interface | RJ45 × 1 |
| Operating system | 64-bit Windows 7/10/11, Linux |
| Power consumption | Typ. 7 W |
| Standard | IEEE 802.3 |
| Stream | 1 2 |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Weight | 121 g (0.3 lb.) |
