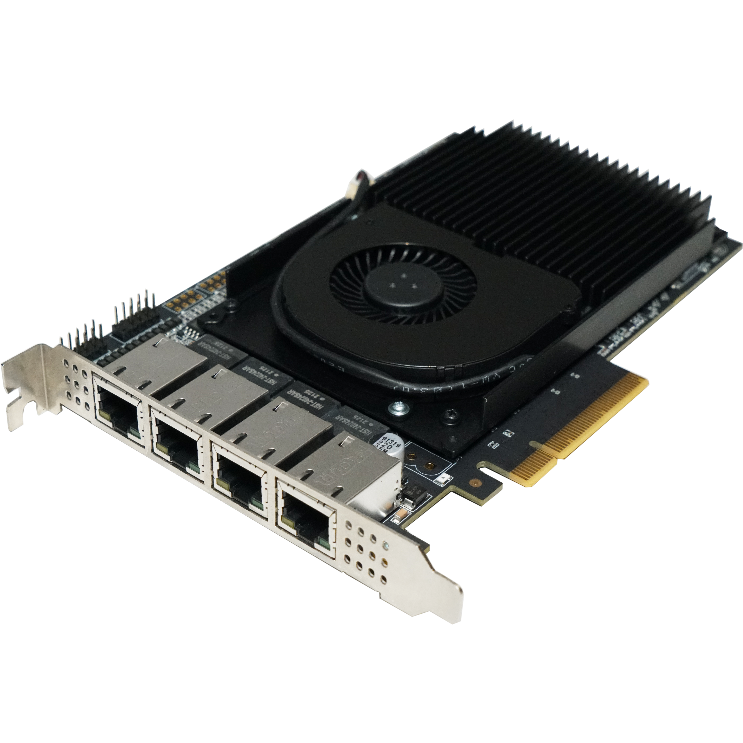

MV-GT1004
mv-gt1004
Vision Components
MV-GT1004 is a Sedeco vision component selected from live catalog data: MVS software · Stream: 4 · Standard: GigE Vision V2.0 · Connector: 9-pin header · Indicator: 1. Configure the matching variant for your station; talk to Sedeco for selection support.
Select variant
SKU: mv-gt1004
Specifications
| Camera connection speed | 10 Gbps |
|---|---|
| Camera quantity supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera type supported | GigE industrial camera and 10 GigE industrial camera |
| Certification | CE, KC, RoHS |
| Client software | MVS |
| Connector | 9-pin header |
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm × 126.3 mm × 21.4 mm (7.1" × 5.0" × 0.8") |
| Humidity | 10% RH to 95% RH (no condensation) |
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output Line 2/3 supports 3.3 VDC to 24 VDC input and 3.3 VDC output |
| Indicator | 1 |
| Interconnect | PCI-E gen2 × 8 |
| Interface | RJ45 × 4 |
| On-board memory | 2 GB DDR3-RAM |
| Operating system | Windows 7/10/11, Ubuntu18.04 to 22.04 on Linux |
| Pixel format | Mono 8/10/10p/12/12p/16 Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Power consumption | Typ. 24 W |
| Standard | GigE Vision V2.0 |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
