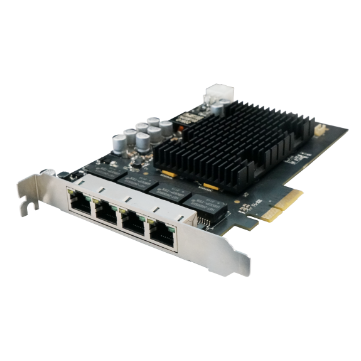

MV-GE2004P
mv-ge2004p
Vision Components
MV-GE2004P is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Select variant
SKU: mv-ge2004p
Specifications
| Camera connection speed | 10/100/1000 Mbps |
|---|---|
| Camera quantity supported | 4 at most |
| Camera type supported | GigE industrial camera |
| Certification | CE, RoHS, KC |
| Delivery bandwidth | 860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Humidity | 10% RH to 95% RH (no condensation) |
| Interconnect | PCI-E gen2 × 4 |
| Interface | RJ45 × 4 |
| Operating system | Windows 7/10/11, Linux |
| Power consumption | Typ. 9 W (without PoE) |
| Standard | IEEE 802.3 |
| Stream | 4 |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Weight | 201 g (0.4 lb.) |
