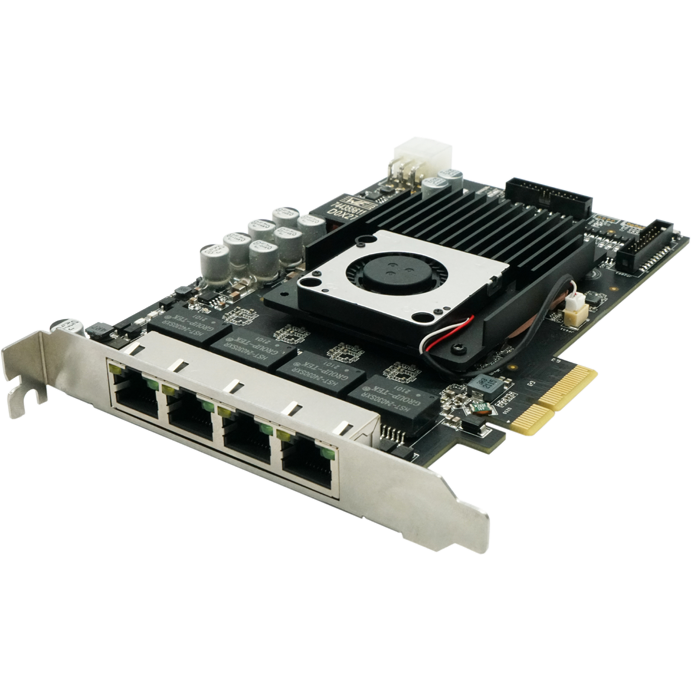

MV-GE1004

mv-ge1004

Vision Components

MV-GE1004 is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.

Select variant

SKU: mv-ge1004
Prijs op aanvraag

Specifications

Camera connection speed1 Gbps
Camera quantity supported4 at most
Camera type supportedGigE industrial camera
CertificationWEEE, RoHS, REACH
Client softwareMVS
ConnectorFemale header
Delivery bandwidth1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth)
Dimension181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Humidity10% RH to 95% RH (no condensation)
I/O TypeProvides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
Indicator1
InterconnectPCI-E gen2 × 4
InterfaceRJ45 × 4
On-board memory1 GB DDR3-RAM
Operating systemWindows 7/10/11, Ubuntu 16.04 to 20.04 on Linux
Pixel formatMono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
Power consumptionTyp. 10 W (without PoE)
Power outputPoE, each channel provides 15 W at most
StandardGigE Vision
Stream4
Stream indicator4 pairs
TemperatureWorking temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
