MV-DPS200P-02
MV-DPS200P-02
3D Camera

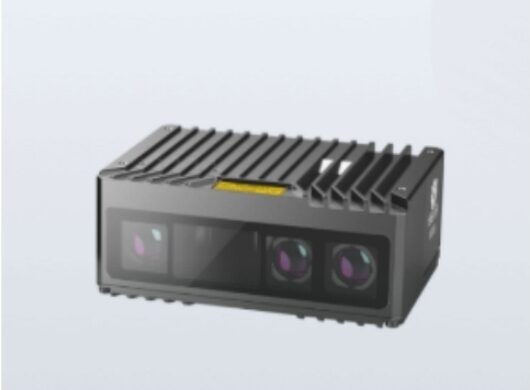

The Hikrobot MV-DPS200P-02 is a compact industrial projected structured-light stereo camera for close-range robot guidance. Its stereo and colour imaging system produces synchronised depth and RGB-D data for small-part handling, random bin picking and alignment during assembly.
With dimensions of 126 × 90 × 50 mm, a weight of 0.74 kg and IP67 protection, the camera is suited to eye-in-hand installations and confined working areas. It provides a 180 × 160 mm near field of view at 250 mm, a 420 × 320 mm far field of view at 500 mm and an acquisition time of 0.2 to 0.7 seconds. Gigabit Ethernet, 24 VDC supply, digital I/O and support for RobotPilot and HiViewer simplify industrial integration.
Select variant
SKU: MV-DPS200P-02
Specifications
| Acquisition time | 0.2–0.7 s |
|---|---|
| Certification | RoHS |
| Clearance distance (CD) | 250 mm |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Data types | Monochrome and colour raw images, depth images, RGB-D images |
| Depth resolution | 1632 × 1264 |
| Digital I/O | 3 opto-isolated inputs and 3 opto-isolated outputs via 12-pin M12 |
| Dimensions | 126 × 90 × 50 mm |
| Far field of view | 420 × 320 mm @ 500 mm |
| Humidity | 20–85% RH, non-condensing |
| Ingress protection | IP67 |
| Light source | Blue LED, 450 nm, RG2 |
| Measurement range (MR) | 250 mm |
| Near field of view | 180 × 160 mm @ 250 mm |
| Operating system | Windows 10 32/64-bit, Windows 11 64-bit |
| Operating temperature | 0–45 °C |
| Output latency | 0.6–1.2 s |
| Power supply | 24 VDC |
| RGB resolution | 3200 × 1944 |
| Software | RobotPilot, HiViewer |
| Storage temperature | −30–80 °C |
| Typical power consumption | 10 W @ 24 VDC |
| VDI/VDE accuracy | 0.03 mm @ 300 mm |
| Weight | 0.74 kg |
| Z-axis repeatability | 0.02 mm @ 300 mm |
