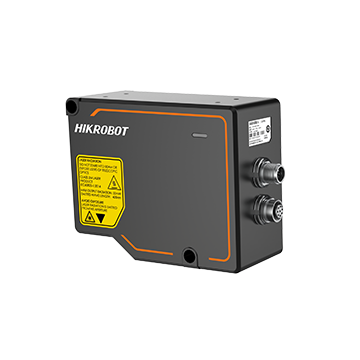

MV-DP3000
3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 405 nm · Variant 1
MV-DP3020-01P-V2.0
3D Camera
MV-DP3000 is a 3D laser profile sensor family for inline height, shape and surface measurement. Measurement volume, mounting distance, surface response and cycle time determine whether the configuration fits the application.
Beschikbare configuraties
- MV-DP3020-01P-V2.0 — 3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 405 nm · Variant 1
- MV-DP3060-01P-V2.0 — 3DMVS, VM3D, or third-party software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 405 nm · Variant 2
- MV-DP3060-03P-V2.0 — 3DMVS, VM3D, or third-party software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 650 nm · Variant 3
- MV-DP3062-01P-V2.0 — 3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 405 nm · Variant 4
- MV-DP3120-01P-V2.0 — 3DMVS, VM3D, or third-party software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 405 nm · Variant 5
- MV-DP3120-03P-V2.0 — 3DMVS, VM3D, or third-party software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 650 nm · Variant 6
- MV-DP3300-01P-V2.0 — 3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 405 nm · Variant 7
- MV-DP3300-03P-V2.0 — 3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 650 nm · Variant 8
- MV-DP3580-01P-V2.0 — 3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.6 kHz (HFR mode) · 405 nm · Variant 9
- MV-DP3580-03P-V2.0 — 3DMVS, VM3D, or third-party 3D software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 650 nm · Variant 10
- MV-DP3900-03P-V2.0 — 3DMVS, VM3D, or third-party software · 3.4 kHz to 46.7 kHz (high frame rate mode) · 650 nm · Variant 11
Select variant
SKU: MV-DP3020-01P-V2.0
Prijs op aanvraag
Key Feature
Built-in high-accuracy algorithm and accuracy is up to submicron level.
Adopts high frame rate chip with 46.7 kHz scan frame rate.
Supports single-frame HDR with better compatibility of the material.
Provides multiple filter modes with stable contour data.
Supports ROI selection and auto settings for easier operation.
Available Model
MV-DP3020-01P V2.0
Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
Specifications
| Brand | Hikrobot |
|---|---|
| Category | 3D Laser Profile Sensor |
| Data points/profile | 3200 |
| Document: 3D MODEL | MV-DP3020-01P V2.0.obj |
| Document: Data Sheet | MV-DP3020-01P 3D Laser Profile Sensor_datasheet_20251218.pdf |
| Document: Drawing | MV-DP3020-01P.zip |
| Document: User Manual | UD40172B_3D Laser Profile Sensor_User Manual_V2.1.0_20241028.pdf |
| Documents | MV-DP3020-01P V2.0.obj, MV-DP3020-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, UD40172B_3D Laser Profile Sensor_User Manual_V2.1.0_20241028.pdf, MV-DP3020-01P.zip, MV-DP3060-01P V2.0.obj, MV-DP3060-01P.zip, MV-DP3060-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3060-03P.obj, MV-DP3060-03P 3D Laser Profile Sensor_datasheet_20251127.pdf, MV-DP3060-03P.zip, UD47444B_3D Laser Profile Sensor 2.0_User Manual_V2.0.0_20260729.pdf, MV-DP3062-01P V2.0.obj, MV-DP3062-01P.zip, MV-DP3062-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3120-01P V2.0.obj, MV-DP3120-01P.zip, MV-DP3120-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3120-03P.obj, MV-DP3120-03P 3D Laser Profile Sensor_datasheet_20251127.pdf, MV-DP3120-03P.zip, MV-DP3300-01P V2.0.obj, MV-DP3300-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3300-01P.zip, MV-DP3300-03P V2.0.obj, MV-DP3300-03P.zip, MV-DP3300-03P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3580-01P V2.0.obj, MV-DP3580-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3580-01P.zip, MV-DP3580-03P V2.0.obj, MV-DP3580-03P.zip, MV-DP3580-03P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3900-03P V2.0.obj, MV-DP3900-03P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP3900-03P.zip |
| Electrical feature: Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Electrical feature: Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Electrical feature: Power consumption | Typ. 17.2 W @ 24 VDC |
| Electrical feature: Power supply | 24 VDC |
| General: Client software | 3DMVS, VM3D, or third-party 3D software |
| General: Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Material code | 306400446 |
| Measurement range (X-axis) | 14 mm @ near field of view 14.3 mm @ reference distance 14.6 mm @ far field of view |
| Measurement range (Z-axis) | 6.8 mm |
| Mechanical: Dimension | 139.5 mm × 111.5 mm × 60.5 mm (5.5" × 4.4" × 2.4") |
| Mechanical: Humidity | 20% RH to 85% RH (no condensation) |
| Mechanical: Ingress protection | IP67 |
| Mechanical: Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Mechanical: Weight | Approx. 1075 g (2.4 lb.) |
| model | MV-DP3020-01P-V2.0 |
| Model: Product Model | MV-DP3020-01P V2.0 |
| Model: Type | MV-DP3020-01P(O-STD) V2.0 |
| Client software | 3DMVS, VM3D, or third-party 3D software |
| Scan frame rate | 3.4 kHz to 46.7 kHz (high frame rate mode) |
| Variant | Variant 1 |
| Wavelength | 405 nm |
| Performance: Data output | Profile data, depth image, brightness image |
| Performance: Data points/profile | 3200 |
| Performance: Laser safety class | Class 3R |
| Performance: Linearity Z-axis (±% of MR) | 0.01 |
| Performance: Measurement range (X-axis) | 14 mm @ near field of view 14.3 mm @ reference distance 14.6 mm @ far field of view |
| Performance: Measurement range (Z-axis) | 6.8 mm |
| Performance: Profile data interval | 4.38 μm to 4.67 μm |
| Performance: Reference distance | 21.4 mm |
| Performance: Repeatability (Z-axis)* | 0.22 μm @ data that sensor tests gauge block on optical platform |
| Performance: Resolution (Z-axis) | 0.71 μm to 0.78 μm |
| Performance: Scan frame rate | 3.4 kHz to 46.7 kHz (high frame rate mode) |
| Performance: Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Performance: Wavelength | 405 nm |
| Reference distance | 21.4 mm |
| Repeatability (Z-axis)* | 0.22 μm @ data that sensor tests gauge block on optical platform |
| Series | DP3000 Series |
