MV-ACU3-MBMs-AM-FL-3m
mv-acu3-mbms-am-fl-3m
Vision Components

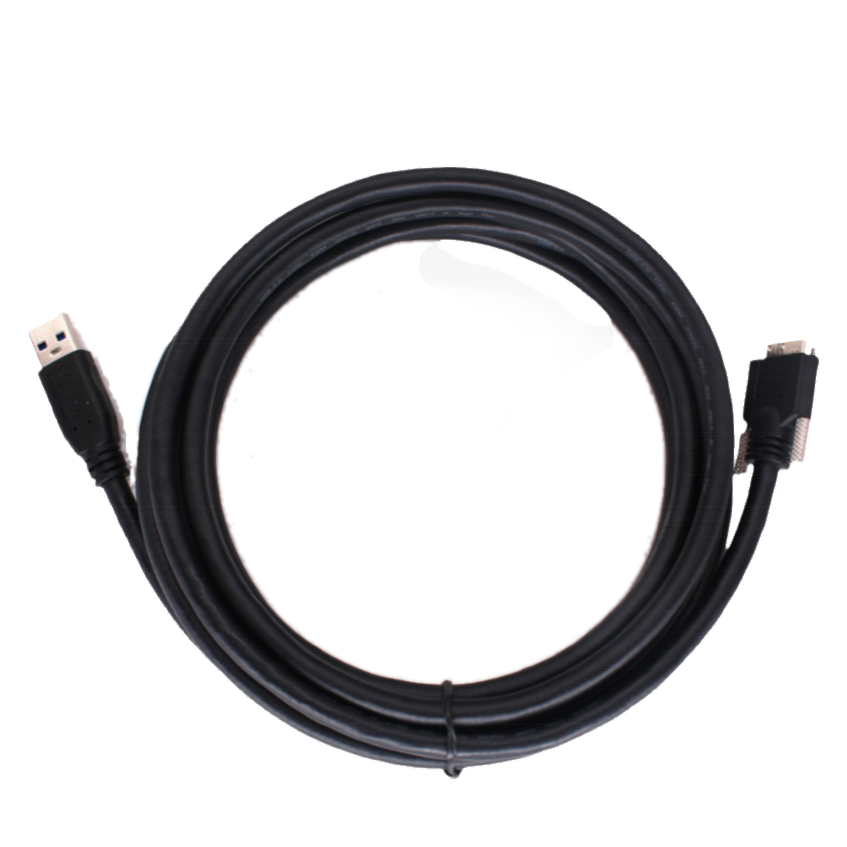

MV-ACU3-MBMs-AM-FL-3m is a Sedeco vision component selected from live catalog data: Jacket: Nitrile PVC · Length: 3 m · Packaging: Individual package · Cable color: Black · Max. voltage: 5 VDC. Configure the matching variant for your station; talk to Sedeco for selection support.
Select variant
SKU: mv-acu3-mbms-am-fl-3m
Specifications
| Applicable scenario | Drag chain |
|---|---|
| Cable color | Black |
| Cable diameter | 6.8 mm |
| Cable mechanical | 26#*1P+24#*2C+26#*(1P+D)+AL+D+B |
| Certification | RoHS,UL |
| Connector durability | >750 cycles |
| End A connector | Micro-B male (with screw) |
| End B connector | A male |
| Jacket | Nitrile PVC |
| Length | 3 m |
| Max. U-type bending cycles | 100 thousand times |
| Max. voltage | 5 VDC |
| Min. bending radius | 81.6 mm |
| Packaging | Individual package |
| Working temperature | -20°C~ 80°C |
