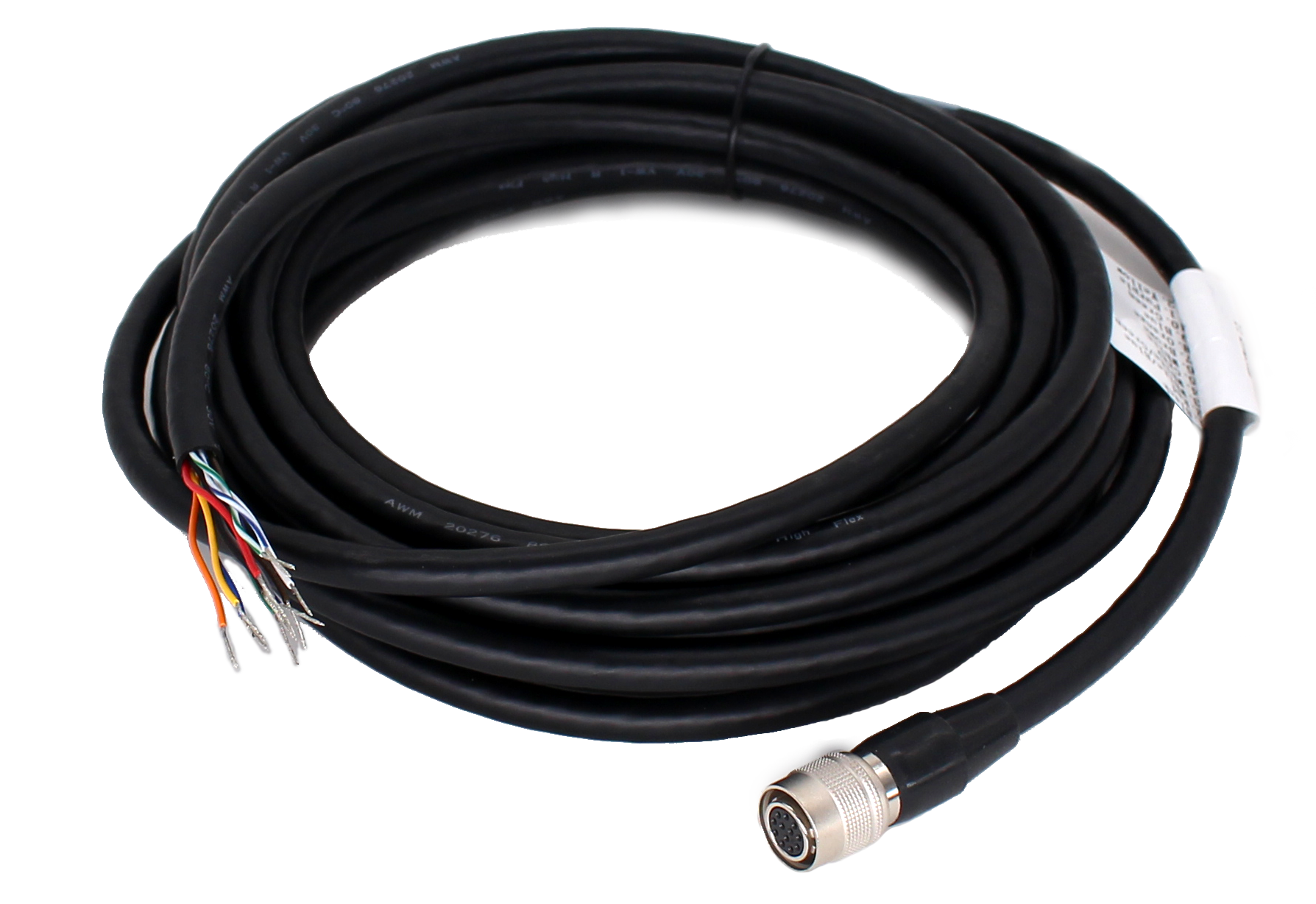

MV-ACP H12p-to-Open Cable
mv-acp-h12p-open-hf-3m
Accessories
MV-ACP-H12p-open-HF-3m is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Beschikbare configuraties
- mv-acp-h12p-open-hf-3m
- mv-acp-h12p-open-hf-5m
- mv-acp-h12p-open-hf-7m
- mv-acp-h12p-open-hf-10m
- mv-acp-h12p-open-st-3m
- mv-acp-h12p-open-st-5m
- mv-acp-h12p-open-st-7m
- mv-acp-h12p-open-st-10m
- mv-acp-h12p-open-st-20m
Select variant
SKU: mv-acp-h12p-open-hf-3m
Prijs op aanvraag
Specifications
| Applicable scenario | Drag chain |
|---|---|
| Cable color | Black |
| Cable diameter | 7.0 mm |
| Cable mechanical | 5P*26AWG+1P*24AWG+F+B |
| Certification | RoHS2.0,UL |
| Connector durability | ≥ 750 cycles |
| Connector model | made in China |
| End A connector | P7 6-pin,Female |
| End B connector | Open |
| Jacket | PVC |
| Max. U-type bending cycles | ≥ 5 million times |
| Max. voltage | 30 VDC |
| Min. bending radius | 84 mm |
| Packaging | Individual package |
| Working temperature | -20°C~80°C |
