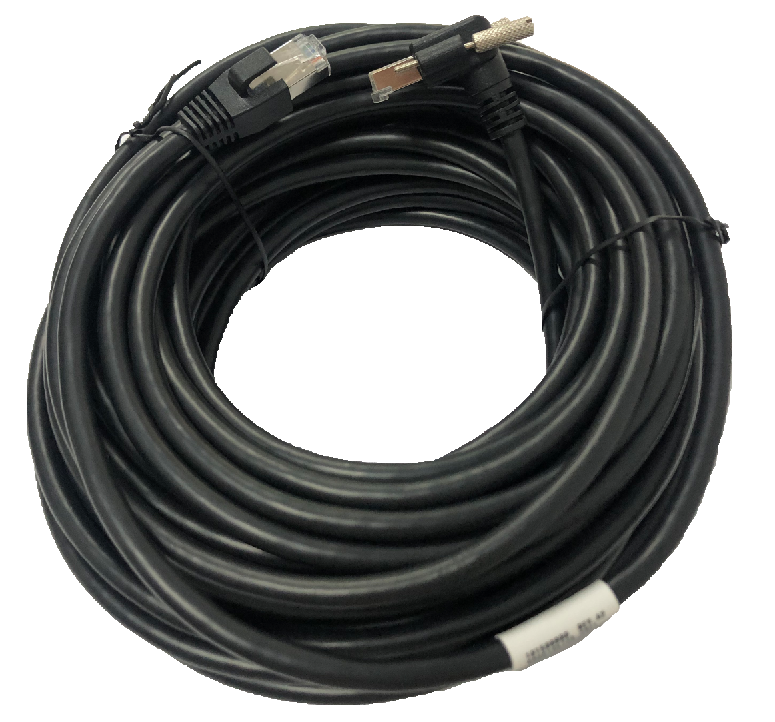

MV-ACG-RJ45s(up)-RJ45-ST-3m
3 m
mv-acg-rj45s(up)-rj45-st-3m
Accessories
MV-ACG-RJ45s(up)-RJ45-ST-3m is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Beschikbare configuraties
- mv-acg-rj45s(up)-rj45-st-3m — 3 m
- mv-acg-rj45s(up)-rj45-st-5m — 5 m
- mv-acg-rj45s(up)-rj45-st-15m — 15 m
Select variant
SKU: mv-acg-rj45s(up)-rj45-st-3m
Prijs op aanvraag
Specifications
| Applicable scenario | Static scenes |
|---|---|
| Cable color | Black |
| Cable diameter | 6.2 mm |
| Cable mechanical | 4P*26#+AB |
| Certification | RoHS2.0,UL |
| Connector durability | ≥750 cycles |
| End A connector | RJ45 (with locking stud),Bend(up) |
| End B connector | RJ45 |
| Jacket | PVC |
| Max. voltage | 30 VDC |
| Min. bending radius | 74.4 mm |
| Length | 3 m |
| Packaging | Individual package |
| Working temperature | -20°C~ 75°C |
