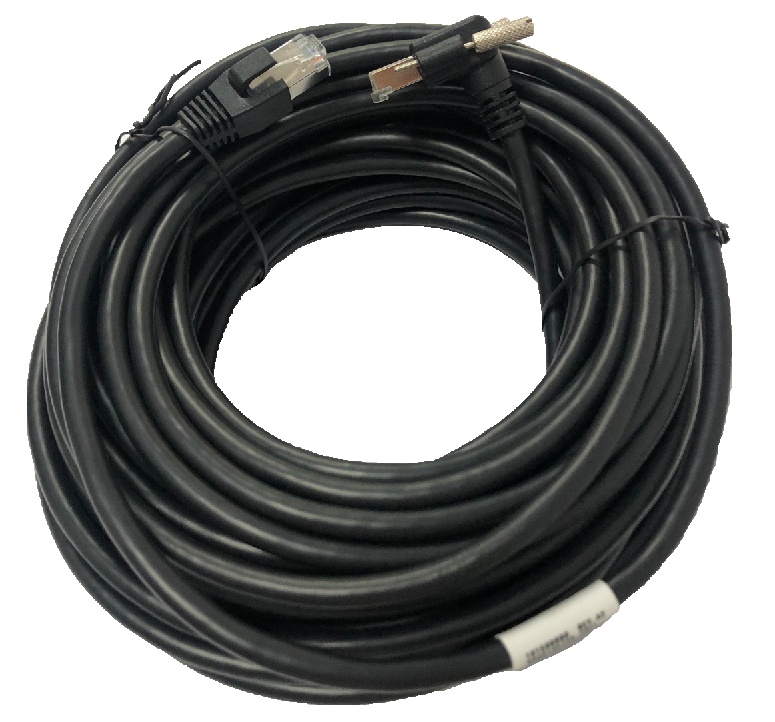

MV-ACG-RJ45s(up)-RJ45-HF-3m
3 m
mv-acg-rj45s(up)-rj45-hf-3m
Accessories
MV-ACG-RJ45s(up)-RJ45-HF-3m is a vision-system component for connecting, powering or interfacing industrial cameras. Use it only with the stated connector, interface and bandwidth or electrical rating. Check cable length, connector orientation and compatibility with the camera and host system.
Available configurations
- mv-acg-rj45s(up)-rj45-hf-3m — 3 m
- mv-acg-rj45s(up)-rj45-hf-5m — 5 m
- mv-acg-rj45s(up)-rj45-hf-15m — 15 m
Select variant
SKU: mv-acg-rj45s(up)-rj45-hf-3m
Specifications
| Applicable scenario | Tank chain |
|---|---|
| Cable color | Black |
| Cable diameter | 6.5 mm |
| Cable mechanical | 4P*26#+AB |
| Certification | RoHS2.0,UL |
| Connector durability | ≥750 cycles |
| End A connector | RJ45 (with locking stud),Bend (up) |
| End B connector | RJ45 |
| Jacket | PVC |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Min. bending radius | 78 mm |
| Length | 3 m |
| Packaging | Individual package |
| Working temperature | -20°C~ 75°C |
