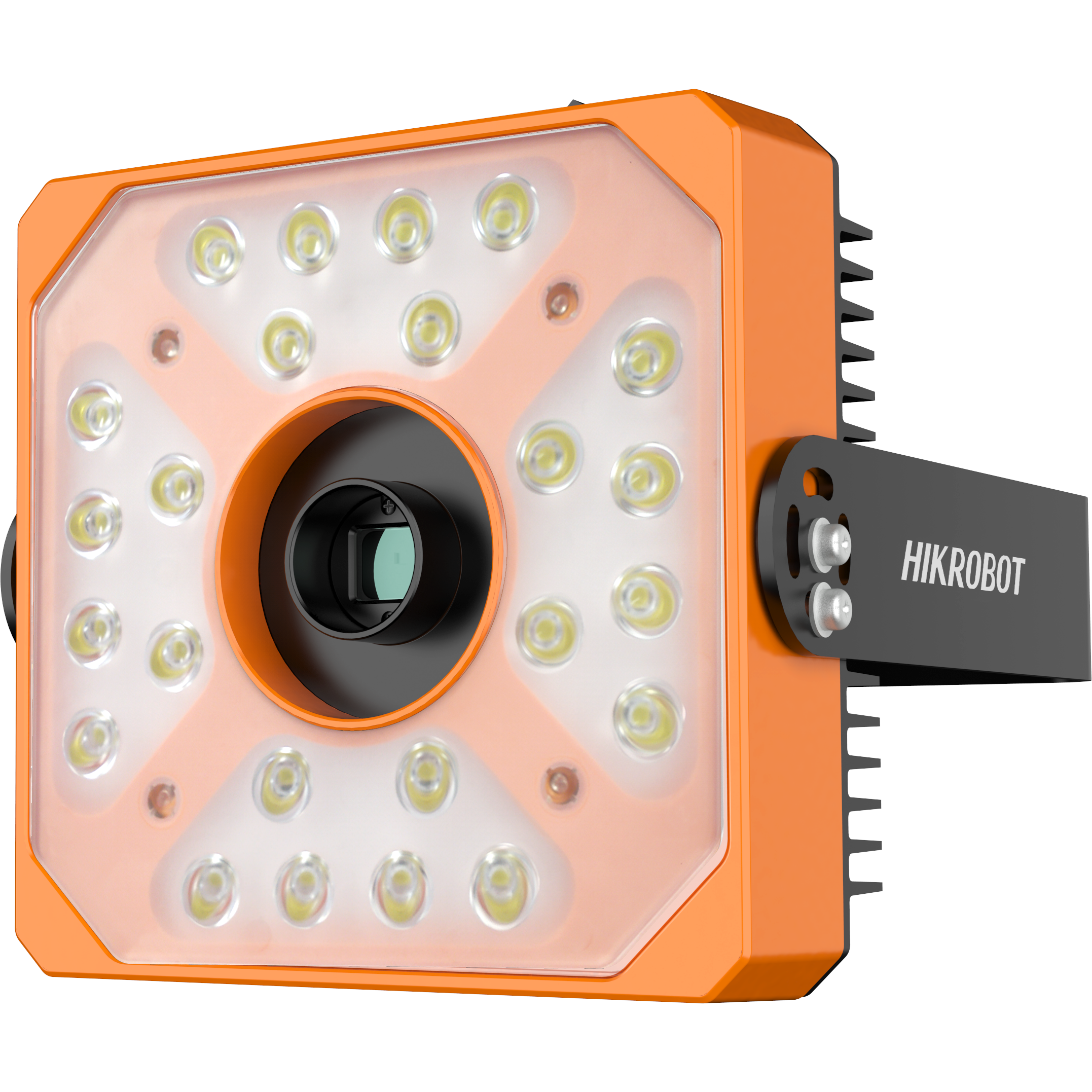

MV-PD010003-12C-8C

Mono · 3072 × 2048

MV-PD010003-06M-12C

Smart Code Reader

MV-PD010003-12C-8C is a fixed smart code-reader family for automated 1D, 2D and DPM identification. Choose the model by code size, reading distance, product speed, resolution and communication interface. Verify difficult surfaces and low-contrast direct marks with representative samples.
Beschikbare configuraties
  • MV-PD010003-06M-12C — Mono · 3072 × 2048
  • MV-PD010003-12M-16C — Mono · 4024 × 3036
  • MV-PD010003-12C-8C — Color · 4024 × 3036

Select variant

SKU: MV-PD010003-06M-12C
Prijs op aanvraag

Specifications

ApertureF2.8 to F16
BrandHikrobot
CategoryFixed code reader
CertificationCE, KC
Client softwareMVS, Code Platform
Data interfaceGigabit Ethernet
Digital I/O6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2)
Dimension (without lens)164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
Document: Data SheetMV-PD010003-06M-12C Logistics Code Reading Set_datasheet_20240102.pdf
Document: DrawingMV-PD010003-06M-12C.zip
Document: FirmwareMV_PD010003_06M_STD_V4.0.7_220623_HIKROBOT.zip
DocumentsMV_PD010003_06M_STD_V4.0.7_220623_HIKROBOT.zip, MV-PD010003-06M-12C.zip, UD36138B_Logistics Code Reading Set_User Manual_V2.0.0_20240102.pdf, MV-PD010003-06M-12C Logistics Code Reading Set_datasheet_20240102.pdf, MV_PD010003_12M_STD_V4.0.7_220623_HIKROBOT.zip, MV-PD010003-12M-16C Logistics Code Reading Set_datasheet_20240102.pdf, MV-PD010003-12M-16C.zip, MV_PD010003_12C_STD_V4.0.15_221027_HIKROBOT.zip, MV-PD010003-12C-8C Logistics Code Reading Set_datasheet_20240102.pdf, MV-PD010003-12C-8C.zip
Electrical feature: Data interfaceGigabit Ethernet
Electrical feature: Digital I/O6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2)
Electrical feature: Max. power consumption20 W
Electrical feature: Power supply24 VDC
General: CertificationCE, KC
General: Client softwareMVS, Code Platform
General: Operating system32/64-bit Windows XP/7/10
Humidity20% to 80% RH, non-condensing
Light source wavelength420 nm to 730 nm
Material code307200243
Max. frame rate17.0 fps
Mechanical: Dimension (without lens)164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
Mechanical: Humidity20% to 80% RH, non-condensing
Mechanical: TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Mechanical: Weight (without lens)Approx. 990 g (2.2 lb.)
modelMV-PD010003-06M-12C
Model: Product ModelMV-PD010003-06M-12C
Model: Type6MP Logisitc Code Reading Set
Mono/colorMono
Operating system32/64-bit Windows XP/7/10
ColorMono
Resolution3072 × 2048
Performance: ApertureF2.8 to F16
Performance: Best working distance900 mm
Performance: Center illuminance5800 lux@1000 mm
Performance: Color temperature5700 K
Performance: Depth of field500 mm
Performance: Field of view (range)550 mm × 340 mm @10 mil
Performance: Focal length12 mm
Performance: Light source wavelength420 nm to 730 nm
Performance: Luminous flux2500 lm
Performance: Max. frame rate17 fps @3072 × 2048
Performance: Mono/colorMono
Performance: Pixel formatMono 8
Performance: Resolution3072 × 2048
Performance: Symbologies1D codes: Code 39, Code 93, Code 128, Codabar, EAN 2D codes: QR Code, Data Matrix
Performance: Uniformity0.53
Power supply24 VDC
Resolution3072 × 2048
SeriesIDS Series Logistics Code Reader
Symbologies1D codes: Code 39, Code 93, Code 128, Codabar, EAN 2D codes: QR Code, Data Matrix
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
