MV-ID3050PM-08M-WBN

mv-id3050pm-08m-wbn

Smart Code Reader

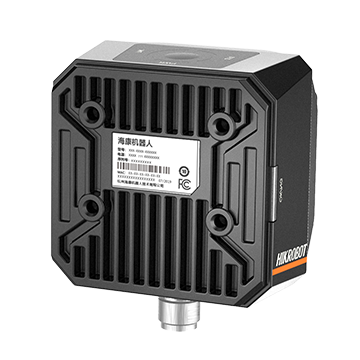

The Hikrobot MV-ID3050PM-08M-WBN (ID reader) is a fixed-mount smart code reader for 1D/2D codes and DPM in triggered or free-run station setups. Imager 2432 × 2048. 50 fps. Mono Optics Half polarization lens cap by default. Polarization lens cap and transparent lens cap are optional.. Interface Fast Ethernet (100 Mbit/s). Illumination Spotlight white light. Spotlight red/blue/IR/UV light is optional.. Variants differ in focal length, lighting, and cover (including polarization): narrower FOV / longer focal length for fine modules at distance; wider FOV for larger labels closer in.

Aantal

Select variant

Focal length

SKU: mv-id3050pm-08m-wbn

Specifications

Certification	CE, RoHS, KC
Client software	IDMVS
Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Dimension	65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Exposure time	60 μs to 1 sec
Gain	0 dB to 18 dB
Humidity	20% RH to 95% RH (no condensation)
Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Lens cap	Half polarization lens cap by default. Polarization lens cap and transparent lens cap are optional.
Lens mount	M12-mount, mechanical focus supported
Light source	Spotlight white light. Spotlight red/blue/IR/UV light is optional.
Max. frame rate	50 fps
Max. power consumption	Avg.: 10.6 W @ 24 VDC (light source enabled) Max.: 45 W @ 24 VDC (light source enabled)
Max. reading speed	60 codes/sec
Mono/color	Mono
Pixel size	3.4 μm × 3.4 μm
Power supply	24 VDC
Resolution	2432 × 2048
Sensor size	1/1.7"
Sensor type	CMOS, global shutter
Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF417
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Weight	Approx. 280 g (0.6 lb.)
