MV-ID5060M-00C-NNN
C-mount · 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") · Transparent lens cap. · 00C-NNN
mv-id5060m-00c-nnn
Smart Code Reader

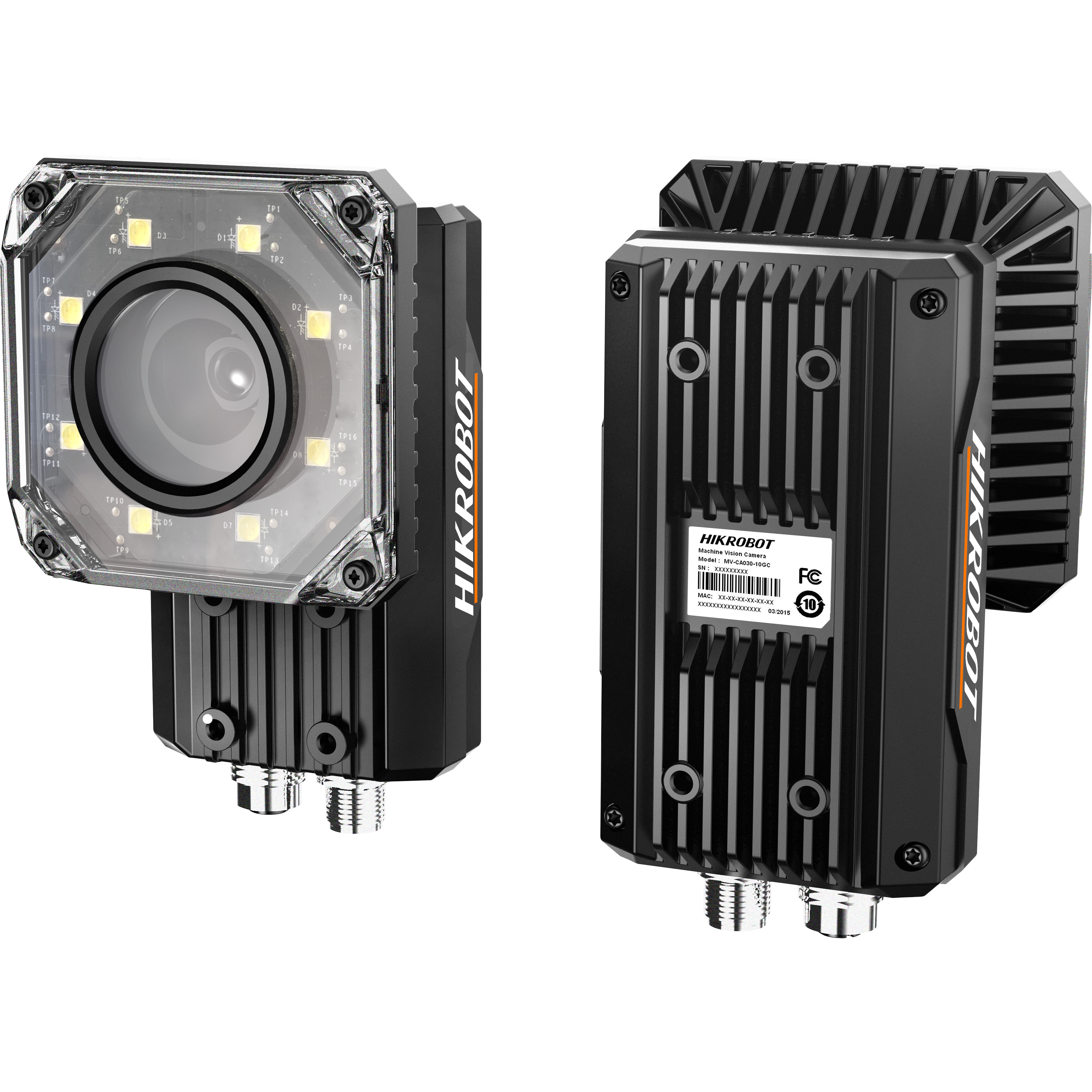

The Hikrobot MV-ID5060M-00C-NNN (ID reader) is a fixed-mount smart code reader for 1D/2D codes and DPM in triggered or free-run station setups.
Imager 3072 × 2048. 30 fps. Mono Interface Gigabit Ethernet (1000 Mbit/s).
Variants differ in focal length, lighting, and cover (including polarization): narrower FOV / longer focal length for fine modules at distance; wider FOV for larger labels closer in.
Beschikbare configuraties
- mv-id5060m-00c-nnn — C-mount · 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") · Transparent lens cap. · 00C-NNN
- mv-id5060m-08s-wbn — M12-mount, mechanical autofocus lens · 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") · Transparent lens cap. Polarization lens cap is optional. · 08S-WBN
- mv-id5060m-12s-wbn — M12-mount, mechanical autofocus lens · 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") · Transparent lens cap. Polarization lens cap is optional. · 12S-WBN
- mv-id5060m-16s-wbn — M12-mount, mechanical autofocus lens · 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") · Transparent lens cap. Polarization lens cap is optional. · 16S-WBN
- mv-id5060m-25s-wbn — M12-mount, mechanical autofocus lens · 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") · Transparent lens cap. Polarization lens cap is optional. · 25S-WBN
Select variant
SKU: mv-id5060m-00c-nnn
Specifications
| Certification | CE, RoHS, KC |
|---|---|
| Client software | IDMVS |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Exposure time | 16 μs to 1 sec |
| Gain | 0 dB to 40 dB |
| Humidity | 20% RH to 95% RH (non-condensation) |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Max. frame rate | 30 fps |
| Max. power consumption | 20 W @ 24 VDC (light source is enabled) |
| Max. reading speed | 90 codes/sec |
| Mono/color | Mono |
| Dimension | 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3") |
| Lens cap | Transparent lens cap. |
| Lens mount | C-mount |
| Model | 00C-NNN |
| Pixel size | 2.4 μm × 2.4 μm |
| Power supply | 24 VDC |
| Resolution | 3072 × 2048 |
| Sensor size | 1/1.8" |
| Sensor type | CMOS, rolling shutter |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
