MV-ID3013PM-06M-WBN

mv-id3013pm-06m-wbn

Smart Code Reader

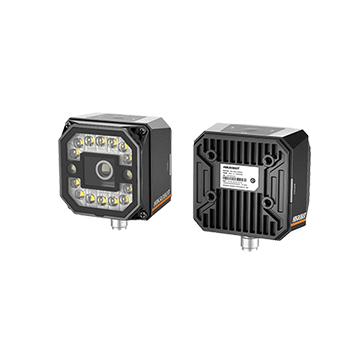

The Hikrobot MV-ID3013PM-06M-WBN (ID reader) is a fixed-mount smart code reader for 1D/2D codes and DPM in triggered or free-run station setups. Imager 1280 × 1024. 60 fps. Mono Optics Half polarized front cover by default. Polarized and transparent ones are optional.. Interface Fast Ethernet. Illumination White light by default. Red/blue/IR light is optional.. Variants differ in focal length, lighting, and cover (including polarization): narrower FOV / longer focal length for fine modules at distance; wider FOV for larger labels closer in.

Aantal

Select variant

Focal length

SKU: mv-id3013pm-06m-wbn

Specifications

Certification	CE, RoHS
Client software	IDMVS
Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Data interface	Fast Ethernet
Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. Device trigger via pressing button on top supported.
Dimension	65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Exposure time	35 μs to 1 sec
Gain	0 dB to 15 dB
Humidity	20% to 95% RH, non-condensing
Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Lens cap	Half polarized front cover by default. Polarized and transparent ones are optional.
Lens mount	M12-mount, mechanical autofocus supported.
Light source	White light by default. Red/blue/IR light is optional.
Max. frame rate	60 fps
Max. power consumption	Approx. 20 W@ 24 VDC (light source enabled)
Max. reading speed	84 codes/sec
Mono/color	Mono
Pixel size	4 μm × 4 μm
Power supply	24 VDC
Resolution	1280 × 1024
Sensor size	1/2.7"
Sensor type	CMOS, global shutter
Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Weight	Approx. 280 g (0.6 lb.)
